Elypso 4.0W
up to 4 meteres edge light
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
TECHNICAL SPECIFICATIONS
Nominal power usage |
4.0 W |
Luminous Flux |
400 lm |
Beam angle |
56° x 12° |
Current stabilization |
YES |
Input Voltage |
12 V DC |
Module dimensions (L x W x D) |
57 x 33 x 20.7 mm |
Cable length |
145 mm ± 5 mm |
Module length incl. cable |
200 mm |
No. of modules in the chain / bag |
20 pcs / 20 pcs |
Lifespan |
~50 000 h |
Working temperature |
-40°C ÷ +60°C |
Color Rendering Index |
≥82 |
IP Rating |
IP67 |
Warranty |
5 years |

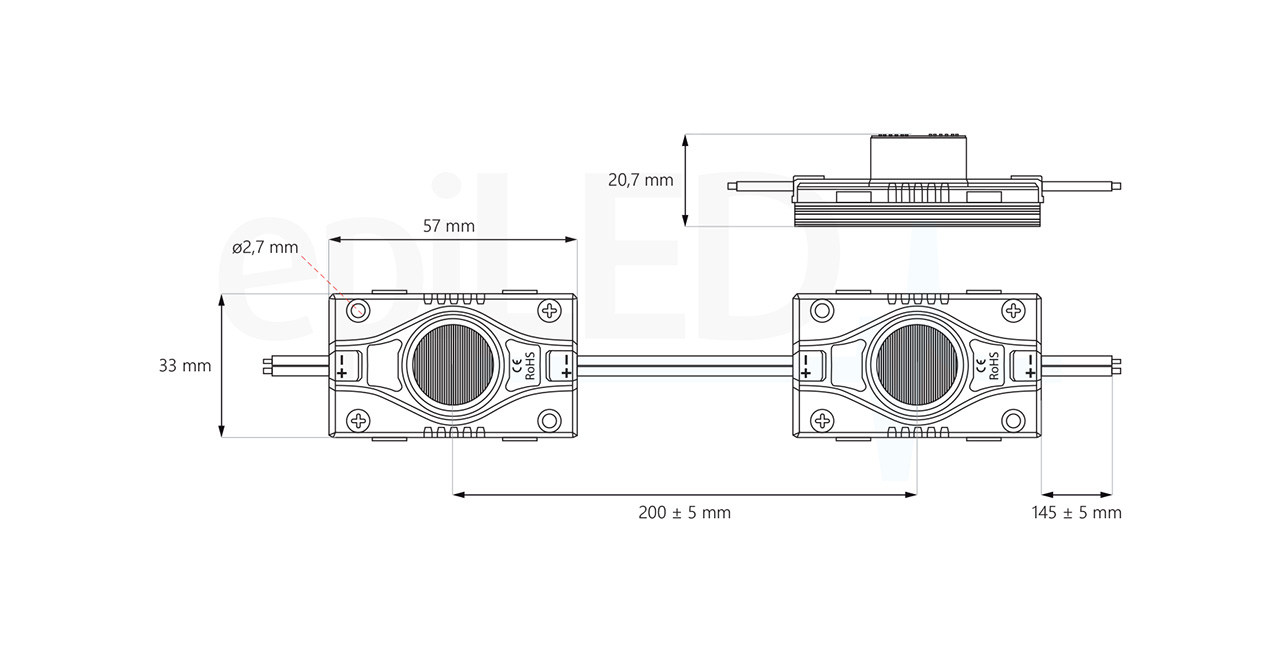

DIMENSIONS

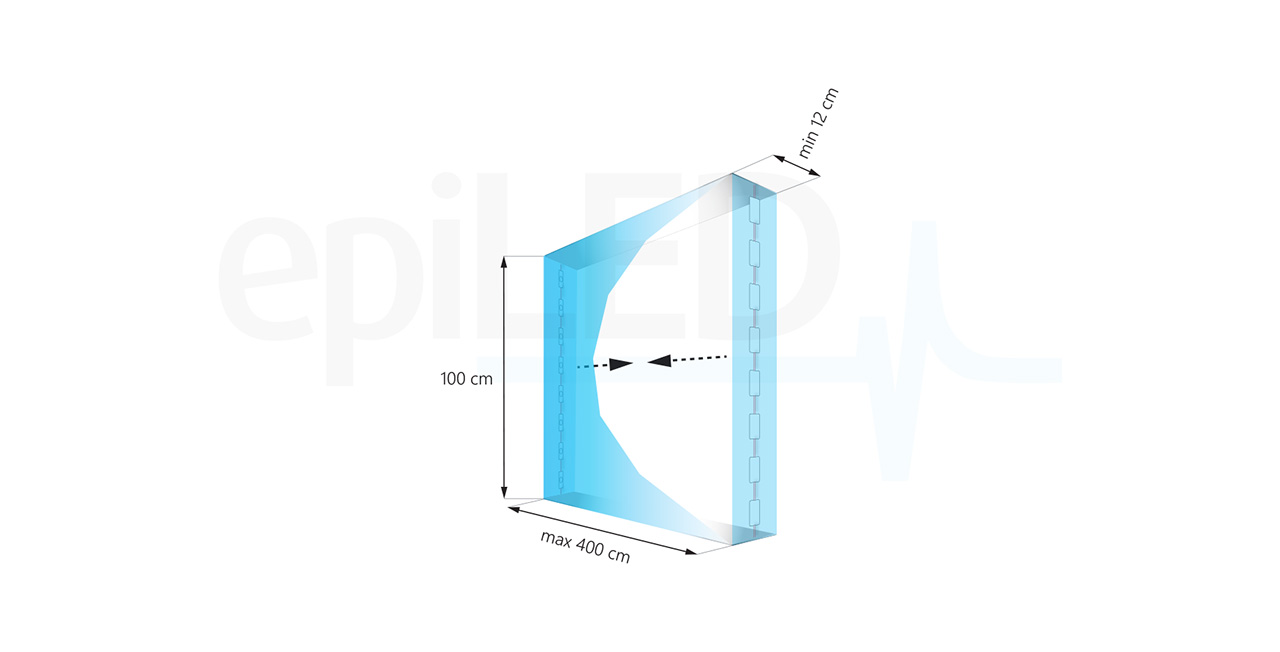

APPLICATION
best for one-sded lightboxes (12-25 cm depth) and two-sided lightboxes (15-30 cm depth)
Number of modules |
16 pcs |
---|---|
Lumen output |
6 400 lm |
Power usage |
64 W |
NOTE: the exact number of modules depends on the used materials and the effect we want to achieve.
