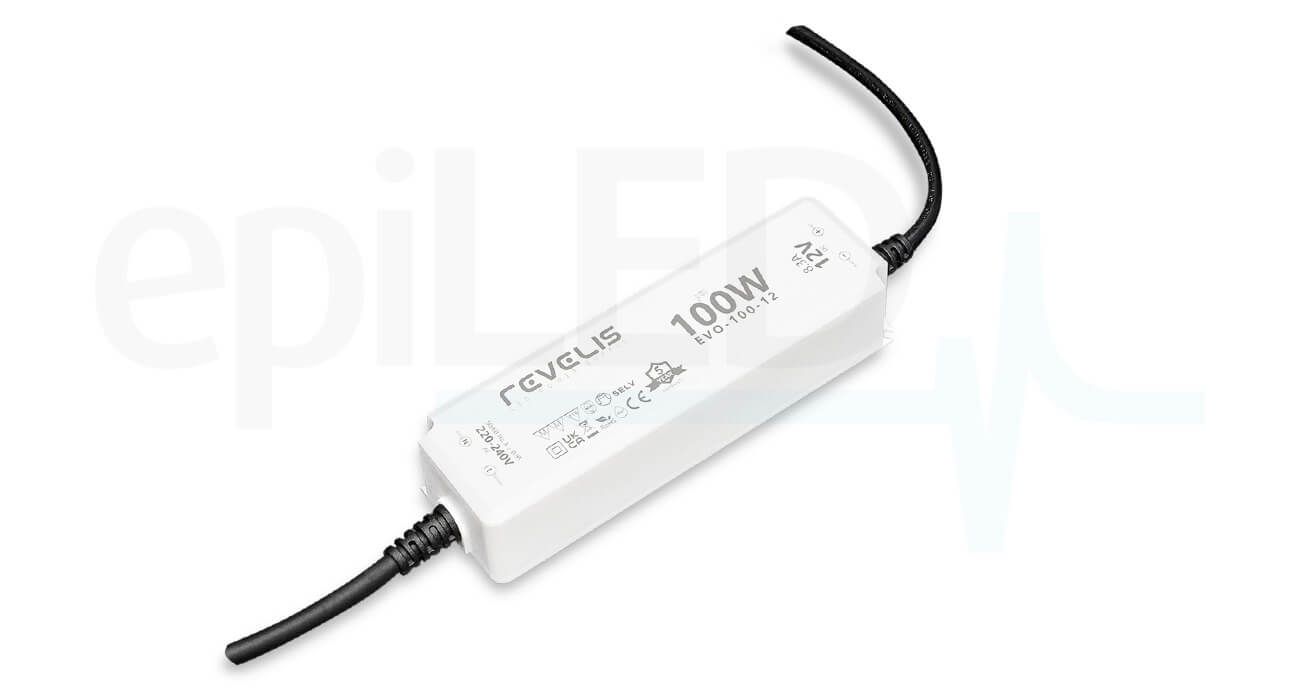

Revelis EVO-100-12

FEATURES

protections: short circuit / over load

built-in PFC filter and double isolation wiring

plastic housing with IP67 level

can be mounted on flammable surfaces, e.g. wood

cooling by free air convection

compliance with European standards and certificates

high reliability

dedicated to applications based on LED lighting used in the furniture and advertising industry

5 years warranty

TECHNICAL SPECIFICATIONS

Output Voltage	12V DC
Rated Current	8.3 A
Rated Power	100 W
Output Voltage Tolerance	± 3%
Input Voltage Range	220~240V AC
Frequency Range	50~60 Hz
Efficienty	90%
AC Input Current	< 0.485 A
Protection	Short circuit \| Over load
Working temperature	-25°C ÷ +50°C
Working humidity	10 ~ 85% RH non-condensing
Compliance with the LVD 2014/35/EU	EN 61347-1:2015-09/A1:2021-06, EN 61347-2-13:2015-04/A1:2017-07, EN 62493:2015-11/A1:2023-03
Compliance with the EMC 2014/30/EU	EN IEC 61000-3-2:2019-04/A1:2021-08, EN IEC 55015:2019-11/A11:2020-07
Compliance with the RoHS 3 2015/863	EN IEC 63000:2019-01
Dimensions	155.6 x 47.6 x 32.5 mm
Output cable length	2 x 343 mm
Weight	0.425 kg
IP Rating	IP67

DOWNLOAD

DATA SHEET
