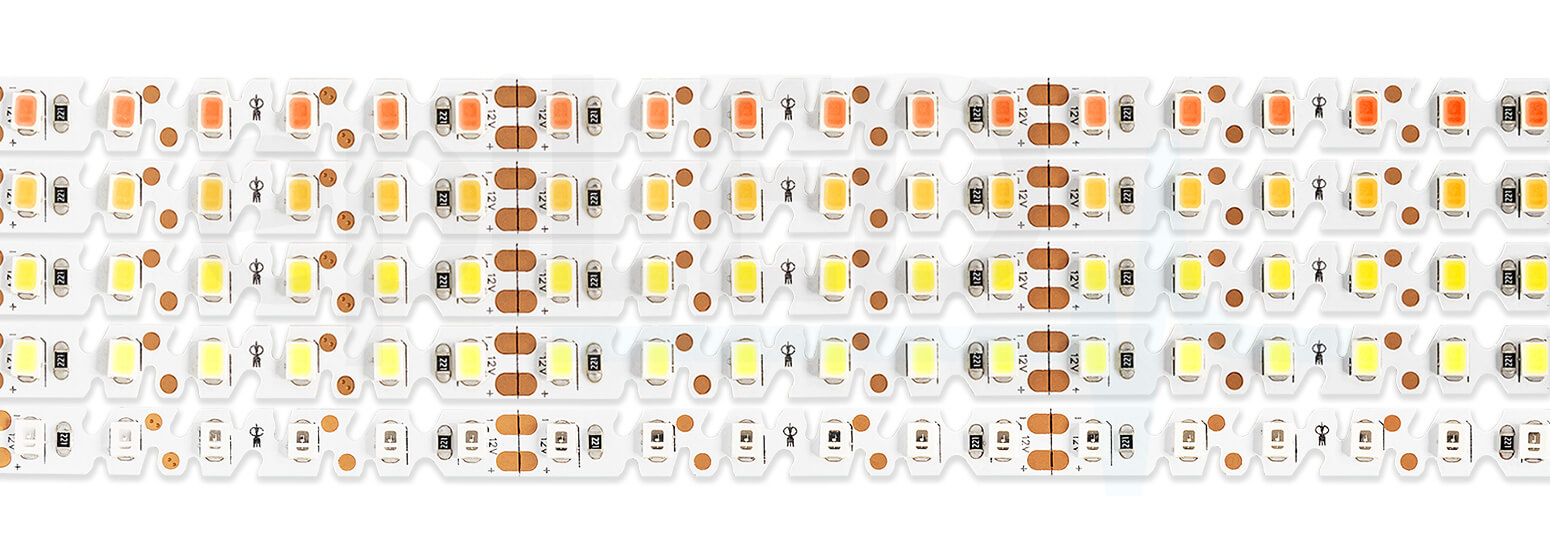

ZigZag-120
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
TECHNICAL SPECIFICATION
|
Input voltage |
12V DC |
|
Nominal power usage |
7.2 W/m |
|
Max power section |
5 m |
|
Colour rendering index |
>80 |
|
Beam angle |
120° |
|
Dimmable with PWM controller |
YES |
|
Szerokość taśmy |
6.5 mm |
|
Strip width |
2.5 cm |
|
Reel length |
5 m |
|
Type of diode |
SMD2835 |
|
Density |
120 LED/m |
|
PCB |
2 oz |
|
Installation |
double-sided adhesive tape + mounting glue |
|
Lifespan |
~50000 hours |
|
Working temperature |
-20°C ÷ +40°C |
|
IP rating |
IP20 |
|
Compliance with standards |
CE / UL / RoHS / WEEE |
|
Warranty |
3 years |
POSSIBLE COLOURS
|
Light colour |
CCT [K] |
Luminous flux [lm/m] |
Luminous efficacy [lm/W] |
Energy class |
|---|---|---|---|---|
|
WW |
2700-3200 |
714.28 |
99 |
F |
|
NW |
3800-4200 |
730.49 |
103 |
F |
|
WH |
6000-6500 |
700.93 |
98 |
F |
|
CW |
9000-14000 |
725.20 |
101 |
F |
|
RD |
λ - 625 |
137 |
22 |
- |
|
GR |
λ - 526 |
450 |
66 |
- |
|
BL |
λ - 457 |
87.10 |
12 |
- |
|
YL |
λ - 585 |
677.20 |
95 |
- |
|
PK |
λ - 450 |
287.95 |
41 |
- |
Ask our sales team for details of available colours.

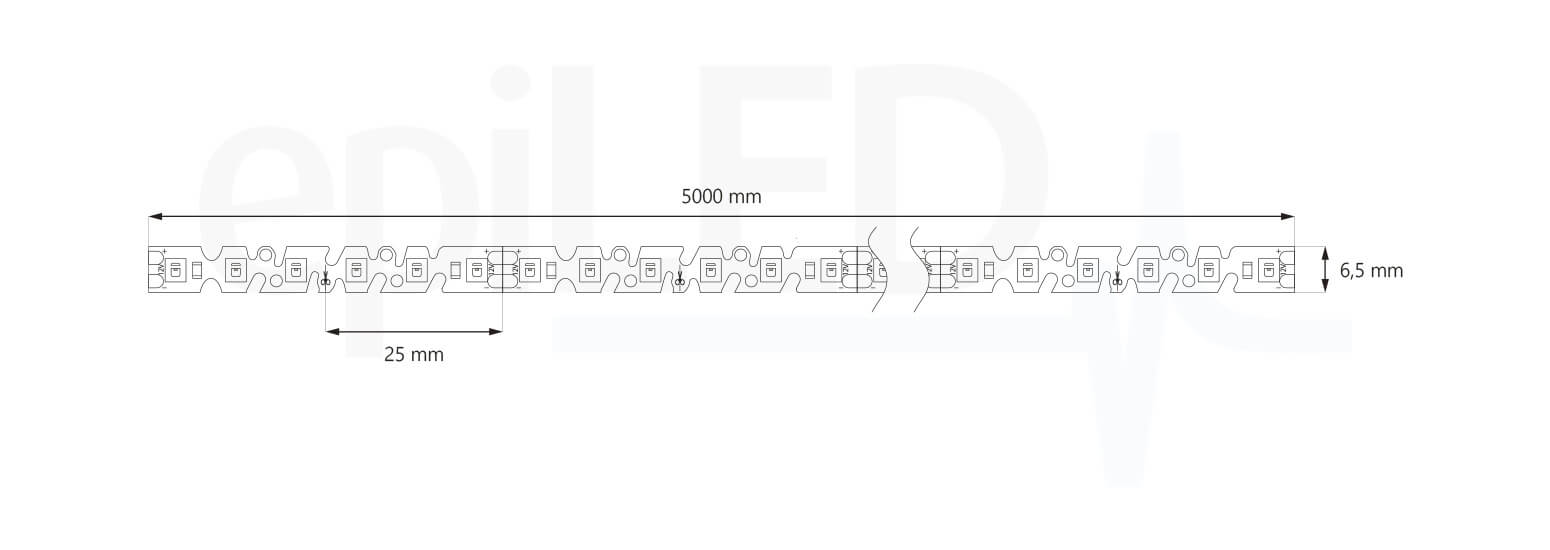

DIMENSIONS

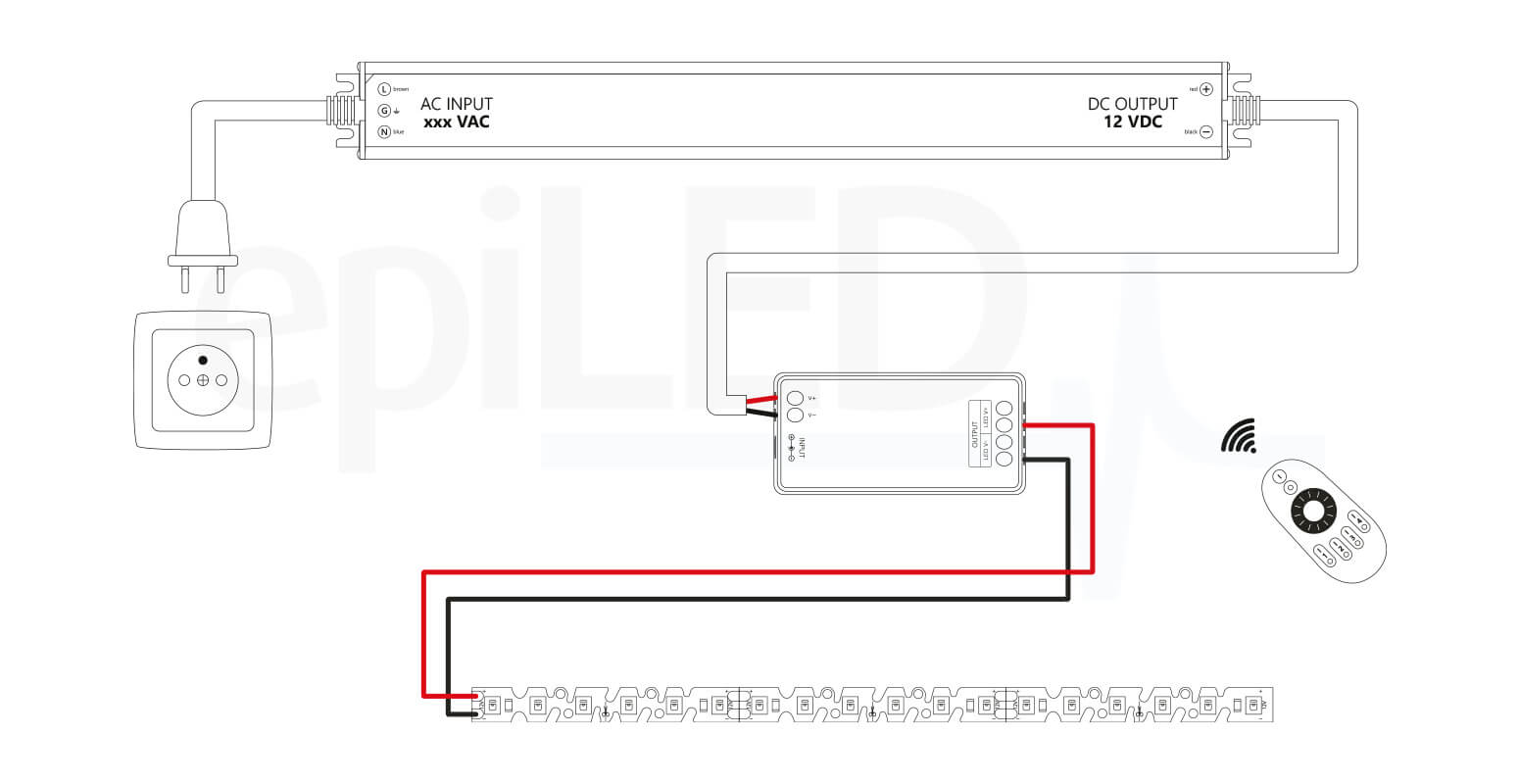

CONNECTION DIAGRAM
