COB-480
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
TECHNICAL SPECIFICATION
|
Input voltage |
12V DC | 24V DC |
|
Nominal power usage |
10 W/m |
|
Max power section |
5 m |
|
Colour rendering index |
>90 |
|
Beam angle |
180° |
|
Dimmable with PWM controller |
YES |
|
Szerokość taśmy |
8 mm |
|
Strip width |
12V: 2.5 cm | 24V: 5 cm |
|
Reel length |
5 m, 25 M |
|
Type of diode |
COB480 |
|
Density |
480 LED/m |
|
PCB |
2 oz |
|
Installation |
double-sided adhesive tape + mounting glue |
|
Lifespan |
~50000 hours |
|
Working temperature |
-20°C ÷ +40°C |
|
IP rating |
IP20 |
|
Compliance with standards |
CE / RoHS / WEEE |
|
Warranty |
3 years |
POSSIBLE COLOURS
|
Light colour |
CCT [K] Wavelength [nm] |
Luminous flux [lm/m] |
Luminous efficacy [lm/W] |
Energy class |
|---|---|---|---|---|
|
WW |
2700-3200 |
949 |
94.9 |
F |
|
NW |
3800-4200 |
748 |
98 |
F |
|
WH |
6000-6500 |
1034 |
97.5 |
F |
|
RD |
λ - 617 |
226 |
21 |
G |
|
GR |
λ - 541 |
1038 |
99.8 |
F |
|
BL |
λ - 452 |
153 |
18.88 |
G |
|
PK |
λ - 547 |
381 |
34.97 |
G |
Ask our sales team for details of available colours.

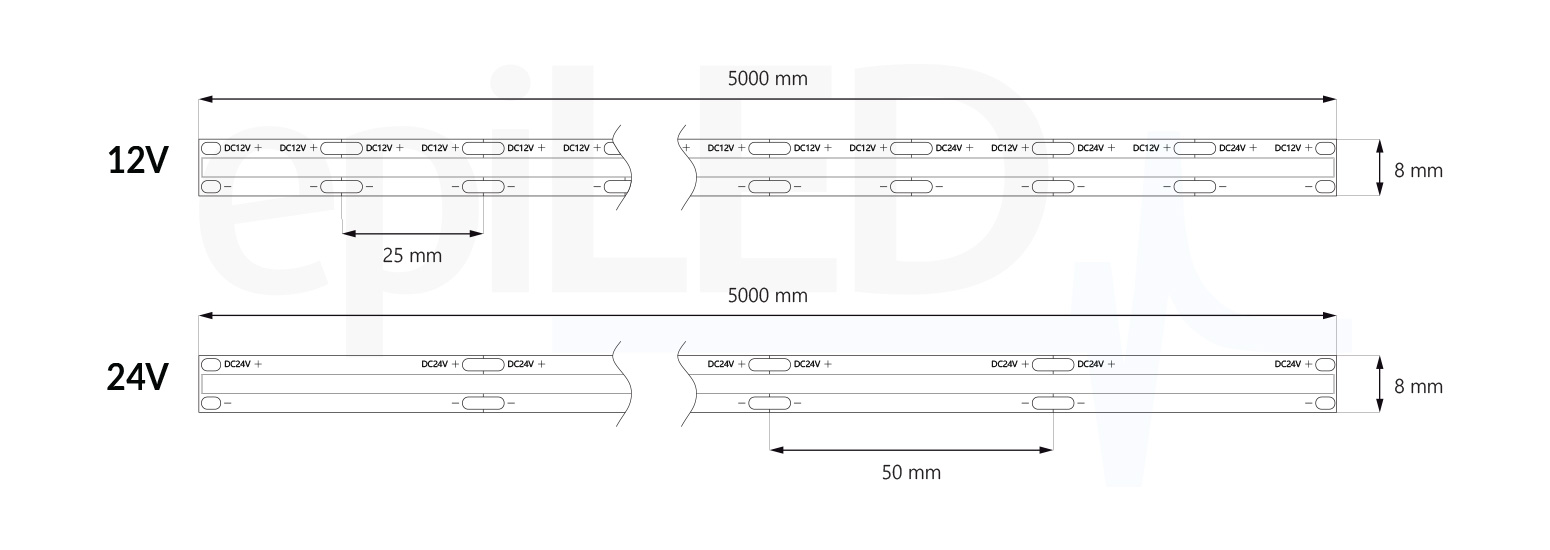

DIMENSIONS

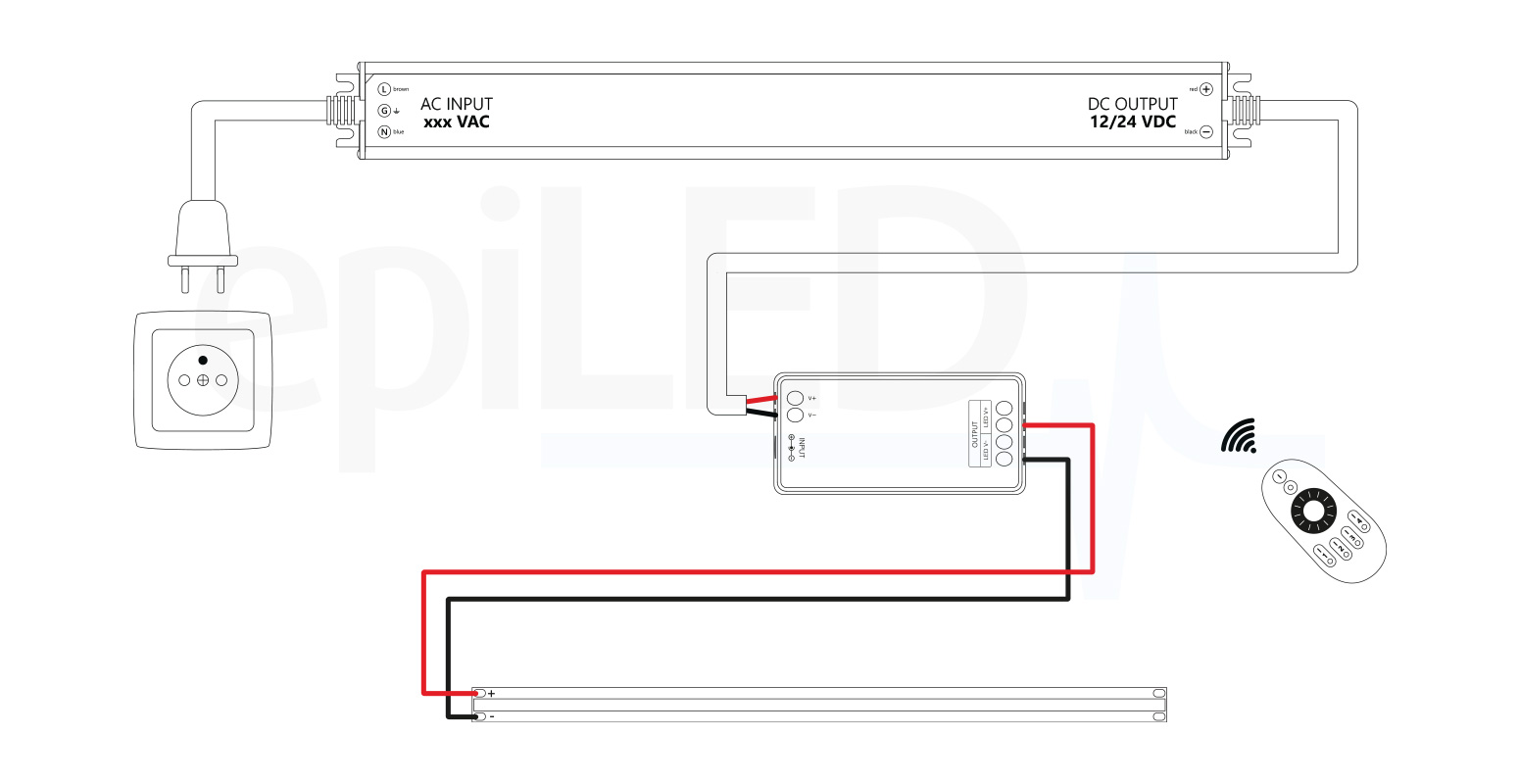

CONNECTION DIAGRAM
