Ultimo
for 15-30 cm
 |
 |
 |
 |
 |
 |
 |
TECHNICAL SPECIFICATIONS
|
Nominal power usage |
1.44 W |
|
Luminous Flux |
135 lm |
|
Beam angle |
120° |
|
Current stabilization |
YES |
|
Input Voltage |
12 V DC |
|
Module dimensions (L x W x D) |
79.7 x 15.5 x 4.6 mm |
|
Cable length |
148 mm ± 5 mm |
|
Module length incl. cable |
228 mm |
|
No. of modules in the chain / bag |
20 pcs / 120 pcs |
|
Lifespan |
~50 000 h |
|
Working temperature |
-40°C ÷ +60°C |
|
Color Rendering Index |
≥82 |
|
IP Rating |
IP67 |
|
Warranty |
5 years |

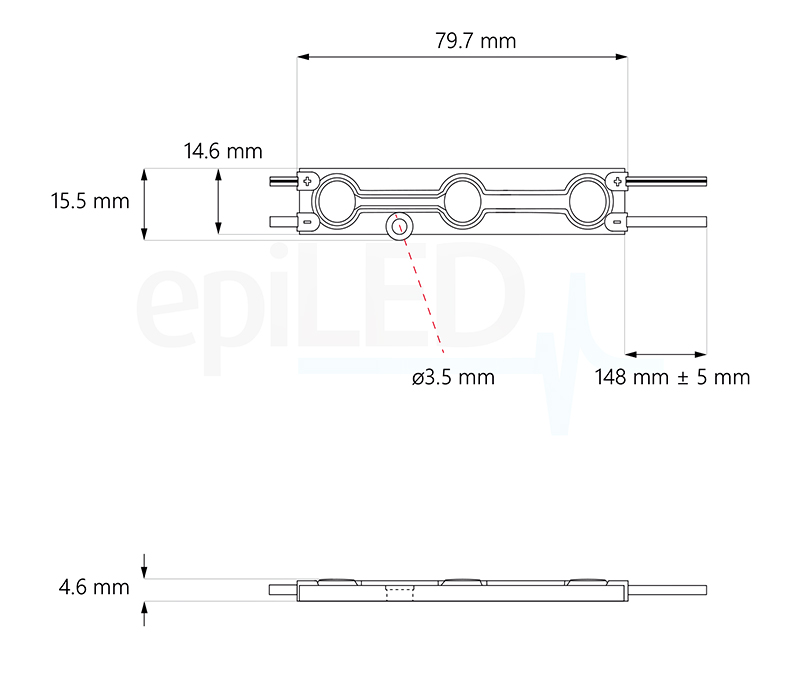

DIMENSIONS

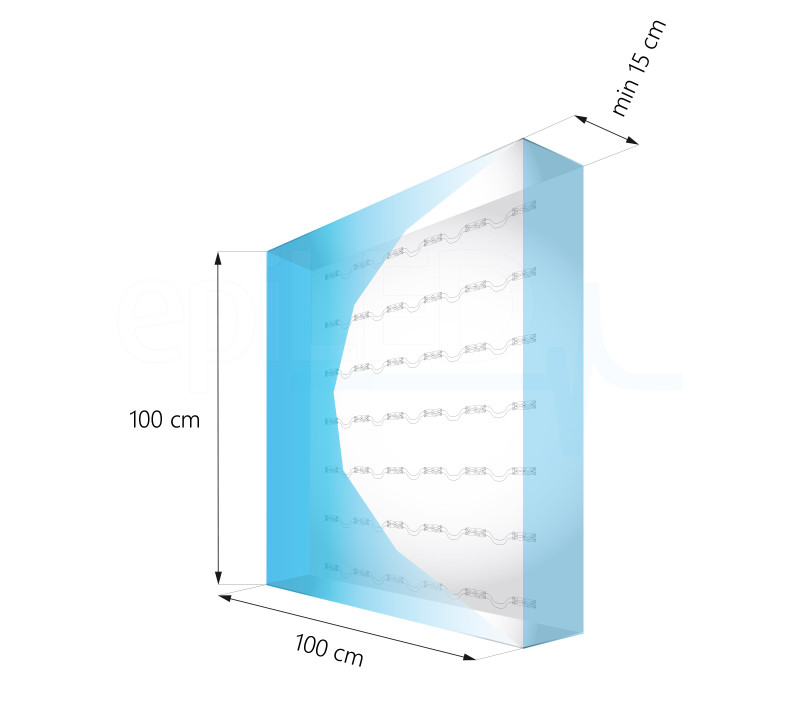

APPLICATION
best for channel letters and lightboxes with a depth of 15-30 cm
Number of modules: 42*
*the exact number of modules depends on the used materials
Lumen output: 5670 lm
Power usage: 60.48 W
