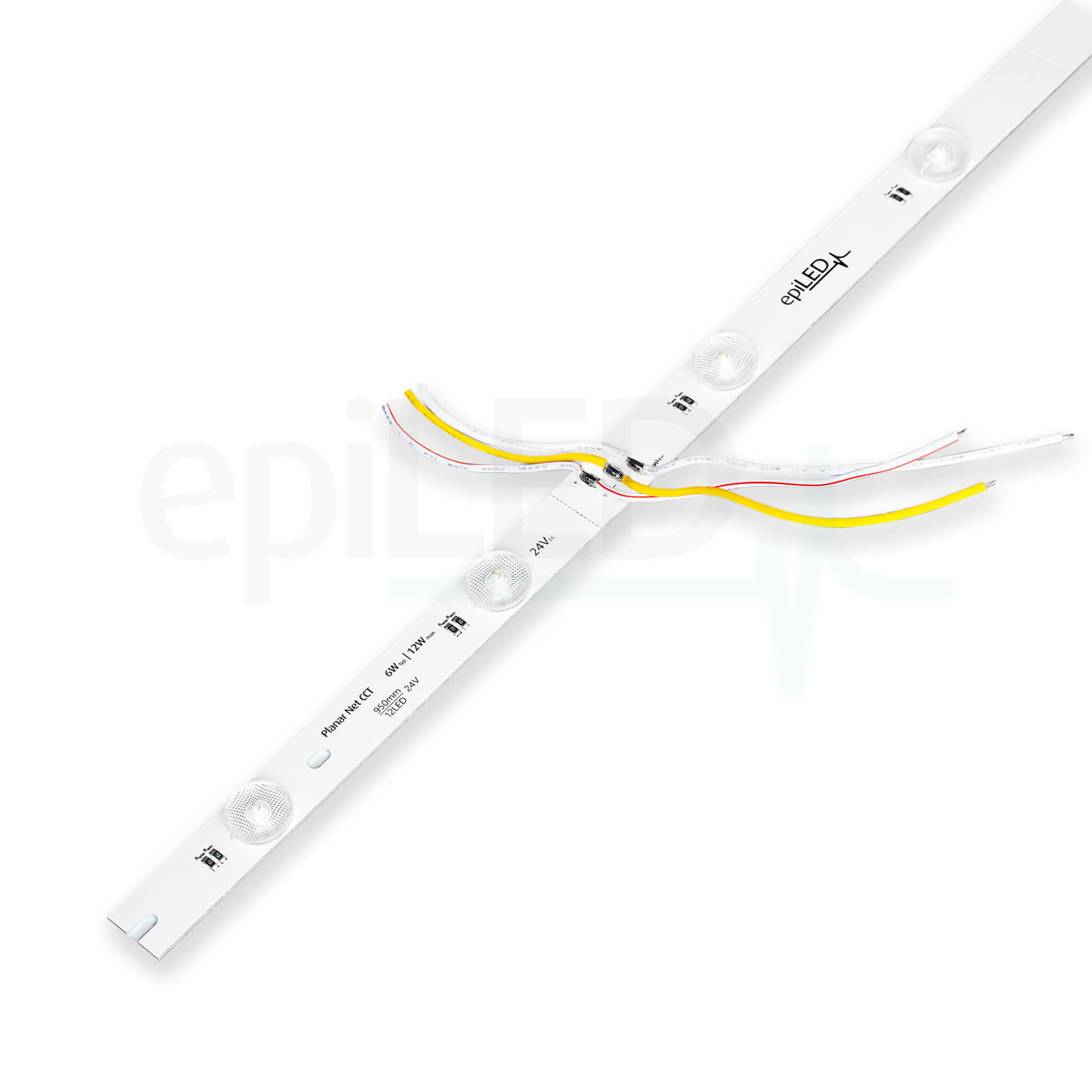

Planar Net CCT
from 6 cm
 |
 |
 |
 |
 |
 |
 |
 |
 |
TECHNICAL SPECIFICATIONS
|
Nominal power usage |
6W typ. / 12W max. |
|
Luminous Flux |
486 lm typ. / 975 lm max. |
|
Beam angle |
170° |
|
Current stabilization |
NO |
|
Input Voltage |
24 V DC |
|
Module dimensions (L x W x D) |
950 x 17 x 7 mm |
|
Cable length |
120 mm ± 5 mm |
|
Module length incl. cable |
950 mm |
|
No. of modules in the chain / bag |
10 pcs / 10 pcs |
|
Lifespan |
~50 000 h |
|
Working temperature |
-25°C ÷ +55°C |
|
Color Rendering Index |
≥82 |
|
IP Rating |
IP20 |
|
Warranty |
5 years |
LIGHT COLOUR
|
Light colour |
CCT [K] |
Luminous flux [lm/m] |
Luminous efficacy [lm/W] |
Energy class |
|---|---|---|---|---|
|
CCT |
2700-6500 |
486 typ. / 975 max. |
81 |
G |

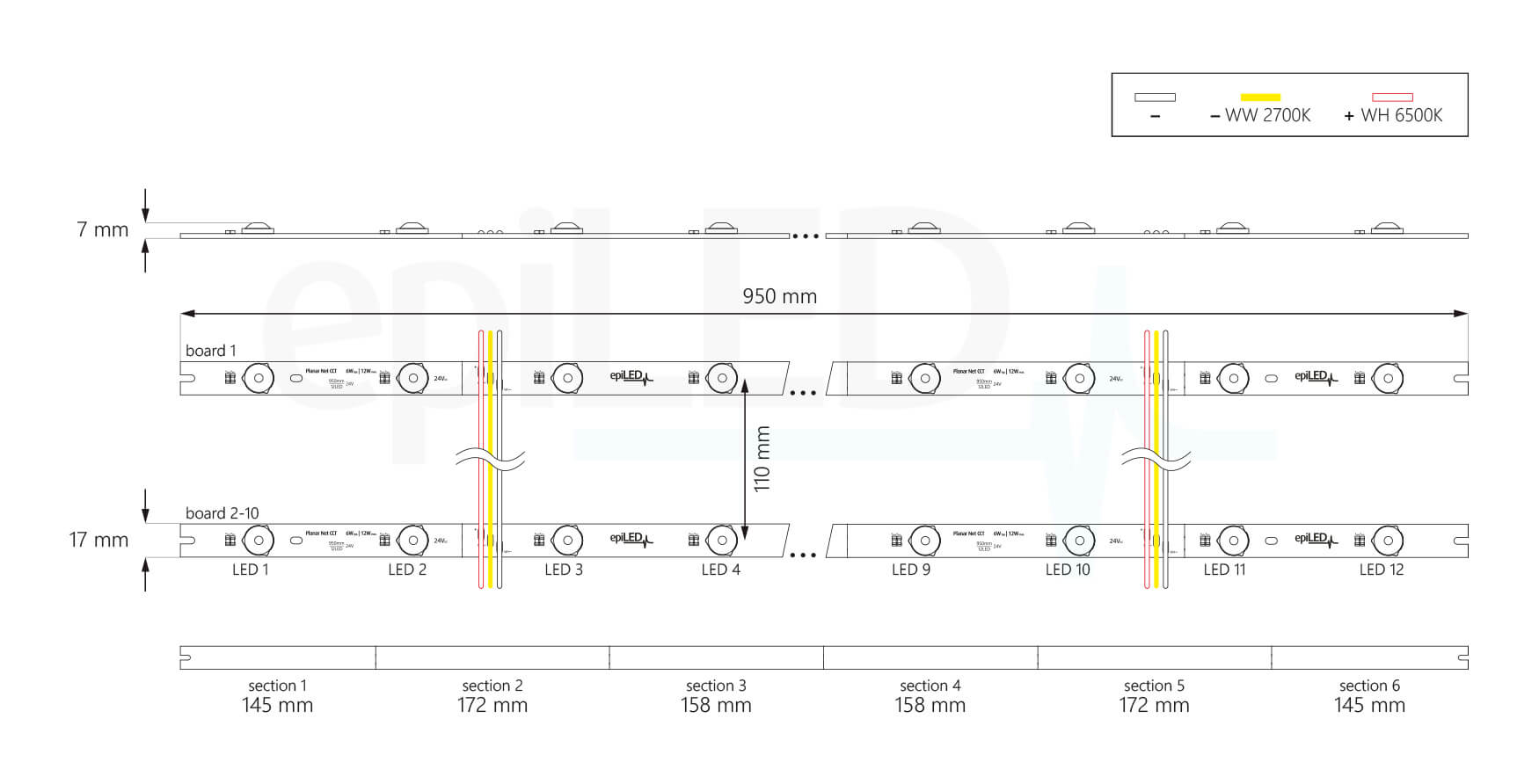

DIMENSIONS

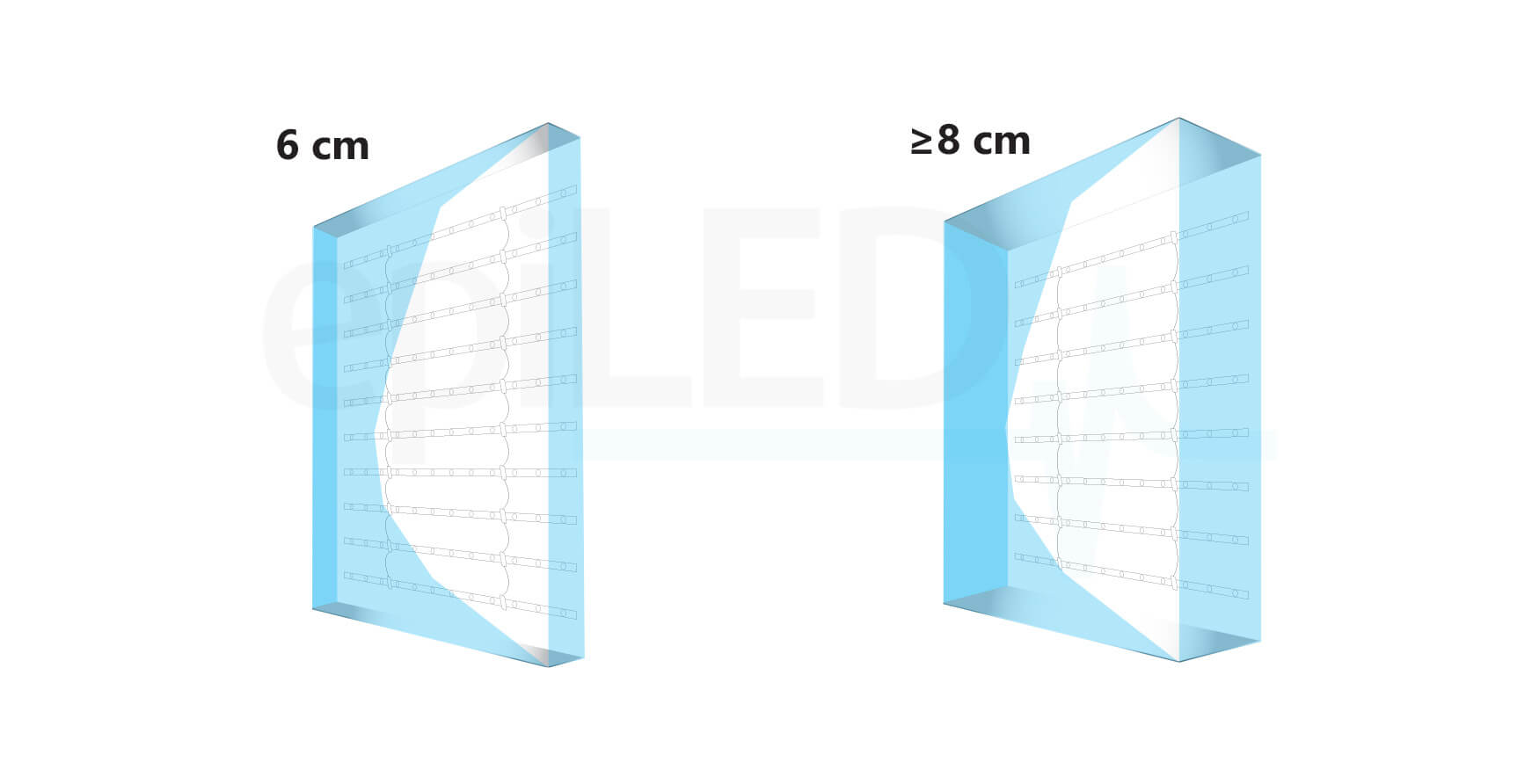

APPLICATION
best for stretch ceilings and lightboxes with a depth from 6 cm
|
Depth |
6 cm |
≥ 8 cm |
|---|---|---|
|
Area |
1 m2 |
1 m2 |
|
CC distance |
8 cm |
11 cm |
|
No. of modules |
10 pcs |
8 pcs |
|
Lumen output |
4860 lm typ. / 9750 lm max. |
3888 lm typ. / 7776 lm max. |
|
Power usage |
60W typ. / 120W max. |
48W typ. / 96W max. |
NOTE: the exact number of modules depends on the used materials and the effect we want to achieve
