Planar Net 4W
for 4-15 cm
 |
 |
 |
 |
 |
 |
 |
 |
TECHNICAL SPECIFICATIONS
|
Nominal power usage per board |
4W |
|
Luminous flux |
743 lm |
|
Beam angle |
178° |
|
Current stabilization |
NO |
|
Input voltage |
24V DC |
|
Board dimensions (L x W x H) |
950 x 14.8 x 6.6 mm |
|
Cutting section |
119 ± 1 mm |
|
Maximum spacing (CC distance) |
120 ± 5 mm |
|

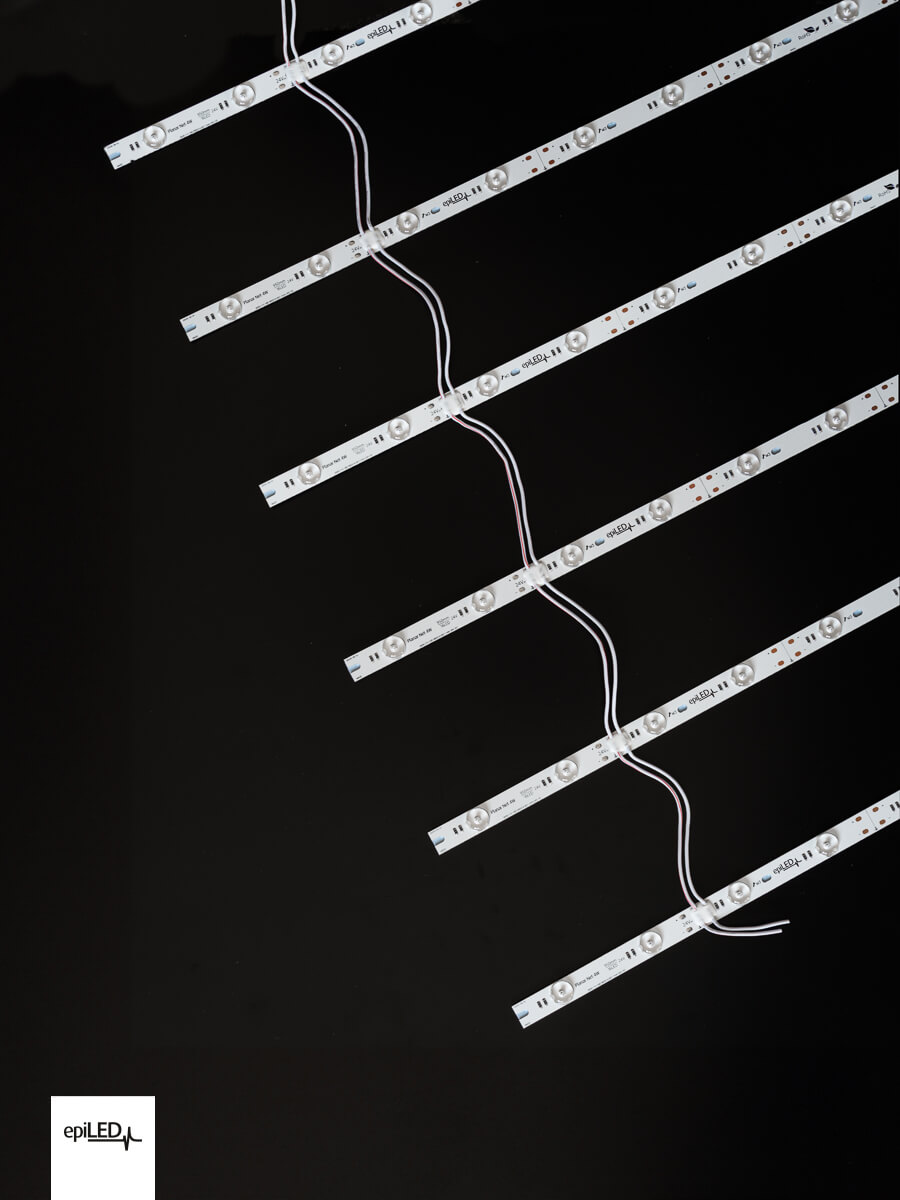

No. of boards per chain |
15 pcs |
|
Lifespan |
~50000 hours |
|
Operating temperature |
-25°C ÷ +50°C |
|
Storage temperature |
-40°C ÷ +85°C |
|
Colour rendering index |
≥82 |
|
IP rating |
IP20 |
|
Compliance with |
CE / UKCA / RoHS / WEEE / UL |
|
Warranty |
5 years |
COLOURS
|
Light colour |
CCT [K] |
Luminous flux [lm/pc] |
Luminous efficacy [lm/W] |
Energy class |
|---|---|---|---|---|
|
NW |
3800-4200 |
705 |
177 |
C |
|
WH |
6500-7000 |
743 |
176 |
C |

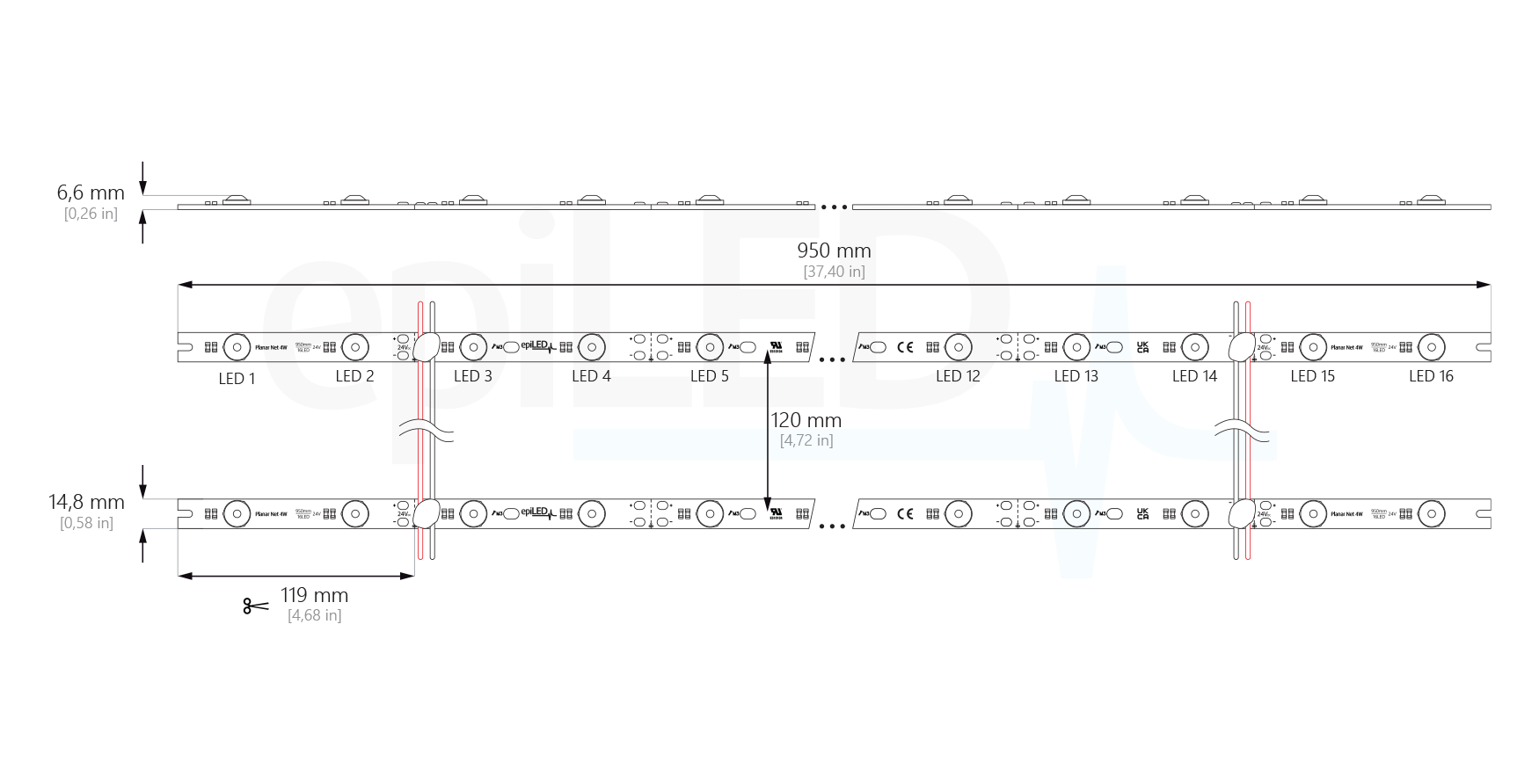

DIMENSIONS

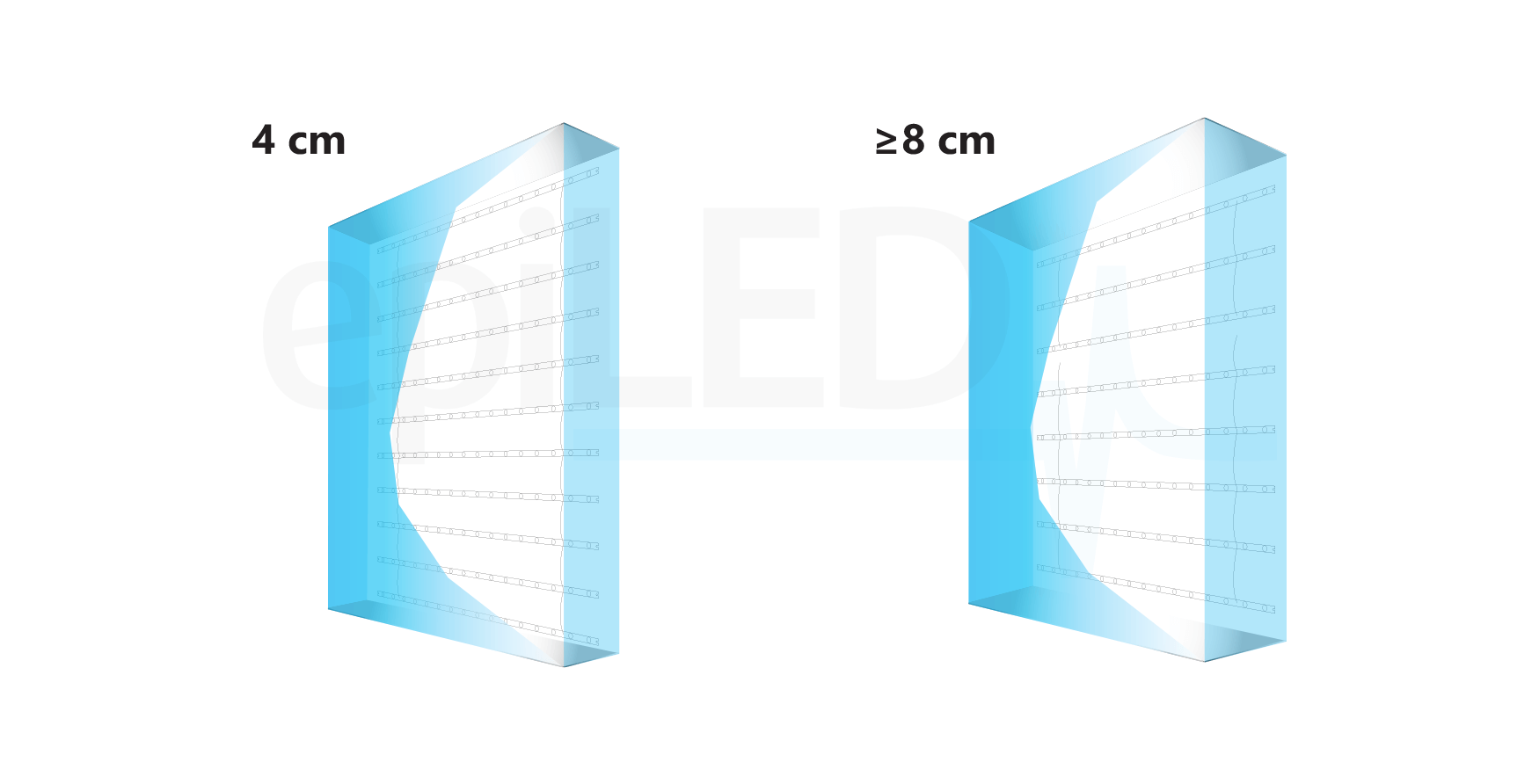

APPLICATION
best suited for lightboxes, textile frames and stretch ceilings with a depth of 2.5-10 cm
|
Depth |
4 cm |
≥ 8 cm |
|---|---|---|
|
Area |
1 m2 |
1 m2 |
|
CC distance |
9 cm |
12 cm |
|
No. of boards |
11 pcs |
8 pcs |
|
Lumen output |
8173 lm |
5944 lm |
|
Power usage |
44W |
32W |
NOTE: the exact number of modules depends on the used materials and the effect we want to achieve.
