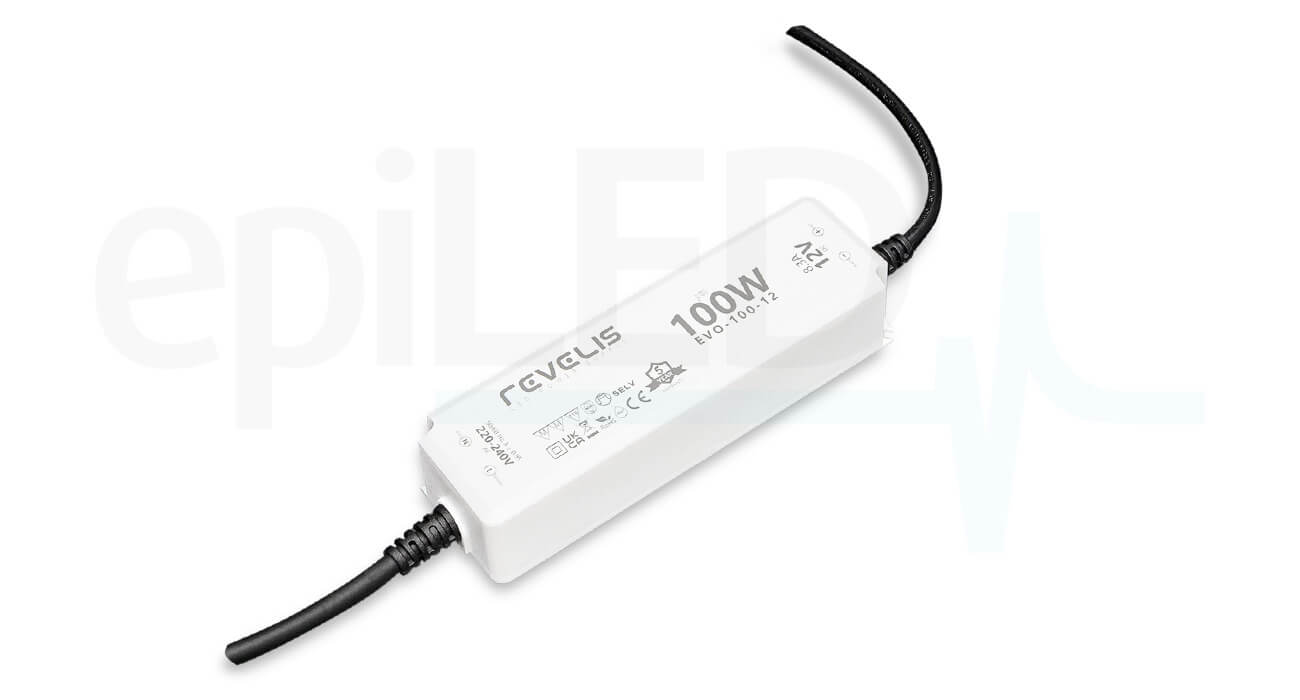

Revelis EVO-100-12

[pb_row background="none" solid_color_value="#FFFFFF" solid_color_color="#ffffff" gradient_color="0% #FFFFFF,100% #000000" gradient_color_css="" gradient_direction="vertical" pattern="" repeat="full" image="" stretch="YES" position="center center" paralax="no" parallax_scroll="no" video_url="" autoplay="no" border_width_value_="0" border_style="solid" border_color="#000" width_value="" width_unit="%" div_padding="" div_padding_top="10" div_padding_bottom="10" div_padding_right="10" div_padding_left="10" css_suffix="" id_wrapper="" ][pb_column span="span12"][pb_heading el_title="Revelis EVO-100-12" tag="h1" text_align="inherit" font="custom" font_face_type="google fonts" font_face_value="Lato" font_size_value_="70" font_style="bold" color="#000000" border_bottom_width_value_="0" border_bottom_style="solid" border_bottom_color="#000000" padding_bottom_value_="0" appearing_animation="0" ]Revelis EVO-100-12[/pb_heading][/pb_column][/pb_row][pb_row background="none" solid_color_value="#FFFFFF" solid_color_color="#ffffff" gradient_color="0% #FFFFFF,100% #000000" gradient_color_css="" gradient_direction="vertical" pattern="" repeat="full" image="" stretch="none" position="center center" paralax="no" parallax_scroll="no" video_url="" autoplay="no" border_width_value_="0" border_style="solid" border_color="#000" width_value="" width_unit="%" div_padding="" div_padding_top="10" div_padding_bottom="10" div_padding_right="10" div_padding_left="10" css_suffix="" id_wrapper="" ][pb_column span="span12"][pb_divider el_title="Divider 6" div_border_width="1" div_border_style="solid" div_border_color="#E0DEDE" appearing_animation="0" ][/pb_divider][/pb_column][/pb_row][pb_row background="none" border_width_value_="0" border_style="solid" border_color="#000" width_unit="%" div_padding_top="0" div_padding_right="0" div_padding_bottom="0" div_padding_left="0" ][pb_column span="span12"][pb_text el_title="TABELKA IKONY" width_unit="%" enable_dropcap="no" appearing_animation="0" ] [/pb_text][pb_divider el_title="Divider 7" div_border_width="1" div_border_style="solid" div_border_color="#E0DEDE" appearing_animation="0" ][/pb_divider][/pb_column][/pb_row][pb_row background="none" solid_color_value="#FFFFFF" solid_color_color="#ffffff" gradient_color="0% #FFFFFF,100% #000000" gradient_color_css="" gradient_direction="vertical" pattern="" repeat="full" image="" stretch="none" position="center center" paralax="no" parallax_scroll="no" video_url="" autoplay="no" border_width_value_="0" border_style="solid" border_color="#000" width_value="" width_unit="%" div_padding="" div_padding_top="10" div_padding_bottom="10" div_padding_right="10" div_padding_left="10" css_suffix="" id_wrapper="" ][pb_column span="span12"][pb_image el_title="EVO-100-12" image_file="images/produkty/zasilacze/revelis-pfc-netzteil-evo-100-12.jpg" image_alt="Revelis PFC Netzeile EVO-100-12" image_size="fullsize" link_type="no_link" image_container_style="no-styling" image_alignment="center" appearing_animation="0" ][/pb_image][/pb_column][/pb_row][pb_row ][pb_column span="span12"][pb_heading el_title="EIGENSCHAFTEN" tag="h2" text_align="inherit" font="custom" font_face_type="google fonts" font_face_value="Lato" font_size_value_="36" font_style="inherit" color="#000000" border_bottom_style="solid" border_bottom_color="#000000" appearing_animation="0" ]EIGENSCHAFTEN[/pb_heading][pb_divider el_title="Divider 4" div_border_width="1" div_border_style="solid" div_border_color="#E0DEDE" appearing_animation="0" ][/pb_divider][pb_text el_title="EIGENSCHAFTEN-TEKST" width_value="100" width_unit="%" enable_dropcap="no" appearing_animation="0" ] Sicherung: Kurzschluss / Überlastung eingebauter PFC-Filter und doppelte Isolationsverkabelung Gehaeuse IP67 Die Moeglichkeit der Montage auf der brennbaren Flaeche wie z.B. Holz Luftkuehlung europaeschen Normen und Zertifikaten entsprechend hohe Sicherheit Geeignet fuer Moebel- und Werbebranche 5 Jahre Garantie [/pb_text][/pb_column][/pb_row][pb_row background="none" solid_color_value="#FFFFFF" solid_color_color="#ffffff" gradient_color="0% #FFFFFF,100% #000000" gradient_color_css="" gradient_direction="vertical" pattern="" repeat="full" image="" stretch="none" position="center center" paralax="no" parallax_scroll="no" video_url="" autoplay="no" border_width_value_="0" border_style="solid" border_color="#000" width_value="" width_unit="%" div_padding="" div_padding_top="10" div_padding_bottom="10" div_padding_right="10" div_padding_left="10" css_suffix="" id_wrapper="" ][pb_column span="span12"][pb_heading el_title="TECHNISCHE DATEN" tag="h2" text_align="inherit" font="custom" font_face_type="google fonts" font_face_value="Lato" font_size_value_="36" font_style="inherit" color="#000000" border_bottom_style="solid" border_bottom_color="#000000" appearing_animation="0" ]TECHNISCHE DATEN[/pb_heading][pb_divider el_title="Divider 4 5" div_border_width="1" div_border_style="solid" div_border_color="#E0DEDE" appearing_animation="0" ][/pb_divider][pb_table el_title="Table 1" tb_style="table-default" appearing_animation="0" ][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Betriebsspannung [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 12V DC [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Nominalstrom [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 8,3 A [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Nominalstaerke [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 100 W [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Ausgangsspannungstoleranz [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] ± 3% [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Eingangsspannungsbereich [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 220~240 V AC [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Nominale Frequenz [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 50 ~ 60 Hz [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Effizienz [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 90% [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Wechselstrom [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] < 0,485 A [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Sicherung [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Kurzschluss | Überlastung [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Arbeitstemperatur [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] -20°C ÷ +45°C [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Arbeitsfeuchtigkeit [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 10 ~ 85 % RH, nicht kondensierend [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Einhaltung der LVD 2014/35/EU [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] EN 61347-1:2015-09/A1:2021-06, EN 61347-2-13:2015-04/A1:2017-07, EN 62493:2015-11/A1:2023-03 [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Einhaltung der EMC 2014/30/EU [/pb_table_item][pb_table_item width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] EN IEC 61000-3-2:2019-04/A1:2021-08, EN IEC 55015:2019-11/A11:2020-07 [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Einhaltung der RoHS 3 2015/863 [/pb_table_item][pb_table_item width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] EN IEC 63000:2019-01 [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Abmessungen [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 155,6 x 47,6 x 32,5 mm [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Kabellänge [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 2 x 343 mm [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Gewicht [/pb_table_item][pb_table_item width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 0,425 kg [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] IP Schutz [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] IP67 [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Garantie [/pb_table_item][pb_table_item width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 5 Jahre [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][/pb_table][/pb_column][/pb_row][pb_row ][pb_column span="span12"][pb_heading el_title="HERUNTERLADEN" tag="h2" text_align="inherit" font="custom" font_face_type="google fonts" font_face_value="Lato" font_size_value_="36" font_style="inherit" color="#000000" border_bottom_style="solid" border_bottom_color="#000000" appearing_animation="0" ]HERUNTERLADEN [/pb_heading][pb_divider el_title="Divider 4 5 5" div_border_width="1" div_border_style="solid" div_border_color="#E0DEDE" appearing_animation="0" ][/pb_divider][pb_button el_title="PRODUKTKARTE" button_text="PRODUKTKARTE" link_type="url" button_type_url="/download/specyfikacje/zasilacze/evo-100-12-spec.pdf" open_in="new_browser" icon="fa-download" button_alignment="inherit" button_size="default" button_color="btn-default" appearing_animation="0" css_suffix="btn-more-link s1" ][/pb_button][/pb_column][/pb_row]

Betriebsspannung	12V DC
Nominalstrom	8,3 A
Nominalstaerke	100 W
Ausgangsspannungstoleranz	± 3%
Eingangsspannungsbereich	220~240 V AC
Nominale Frequenz	50 ~ 60 Hz
Effizienz	90%
Wechselstrom	< 0,485 A
Sicherung	Kurzschluss \| Überlastung
Arbeitstemperatur	-20°C ÷ +45°C
Arbeitsfeuchtigkeit	10 ~ 85 % RH, nicht kondensierend
Einhaltung der LVD 2014/35/EU	EN 61347-1:2015-09/A1:2021-06, EN 61347-2-13:2015-04/A1:2017-07, EN 62493:2015-11/A1:2023-03
Einhaltung der EMC 2014/30/EU	EN IEC 61000-3-2:2019-04/A1:2021-08, EN IEC 55015:2019-11/A11:2020-07
Einhaltung der RoHS 3 2015/863	EN IEC 63000:2019-01
Abmessungen	155,6 x 47,6 x 32,5 mm
Kabellänge	2 x 343 mm
Gewicht	0,425 kg
IP Schutz	IP67
Garantie	5 Jahre
