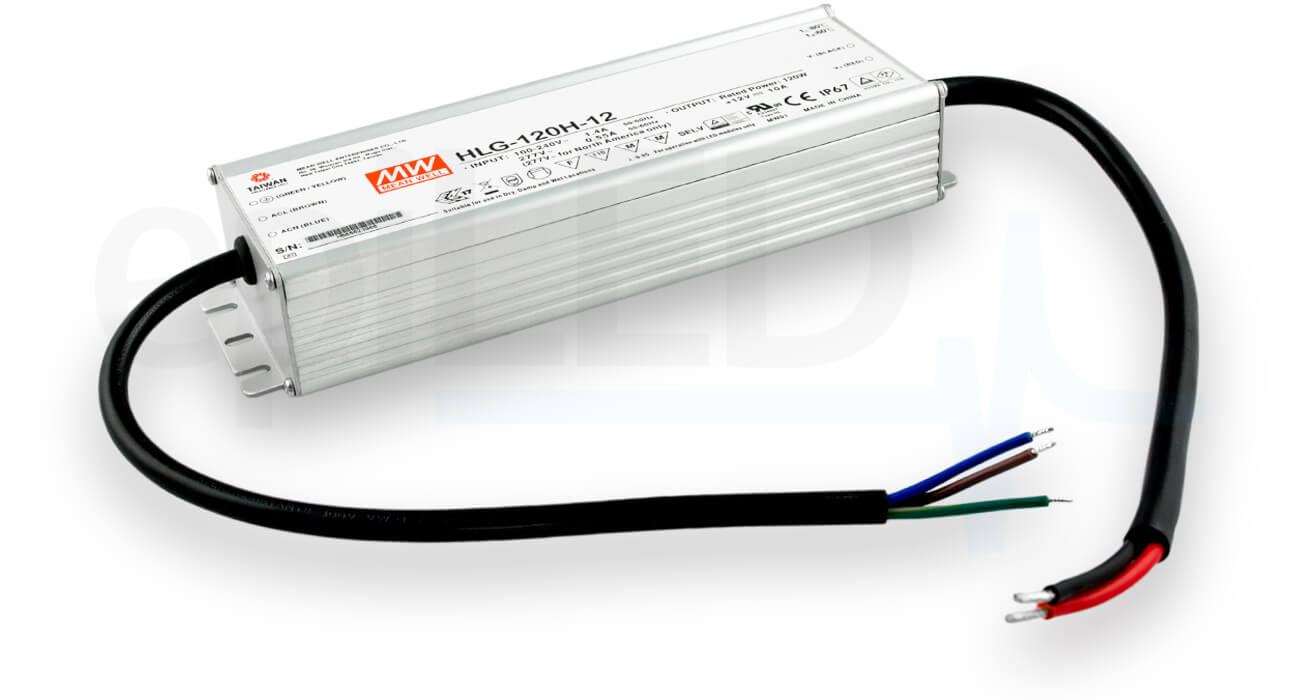

Mean Well HLG-120H

[pb_row background="none" solid_color_value="#FFFFFF" solid_color_color="#ffffff" gradient_color="0% #FFFFFF,100% #000000" gradient_color_css="" gradient_direction="vertical" pattern="" repeat="full" image="" stretch="YES" position="center center" paralax="no" parallax_scroll="no" video_url="" autoplay="no" border_width_value_="0" border_style="solid" border_color="#000" width_value="" width_unit="%" div_padding="" div_padding_top="10" div_padding_bottom="10" div_padding_right="10" div_padding_left="10" css_suffix="" id_wrapper="" ][pb_column span="span12"][pb_heading el_title="Mean Well HLG-120H" tag="h1" text_align="inherit" font="custom" font_face_type="google fonts" font_face_value="Lato" font_size_value_="70" font_style="bold" color="#000000" border_bottom_width_value_="0" border_bottom_style="solid" border_bottom_color="#000000" padding_bottom_value_="0" appearing_animation="0" ]Mean Well HLG-120H[/pb_heading][/pb_column][/pb_row][pb_row background="none" solid_color_value="#FFFFFF" solid_color_color="#ffffff" gradient_color="0% #FFFFFF,100% #000000" gradient_color_css="" gradient_direction="vertical" pattern="" repeat="full" image="" stretch="none" position="center center" paralax="no" parallax_scroll="no" video_url="" autoplay="no" border_width_value_="0" border_style="solid" border_color="#000" width_value="" width_unit="%" div_padding="" div_padding_top="10" div_padding_bottom="10" div_padding_right="10" div_padding_left="10" css_suffix="" id_wrapper="" ][pb_column span="span12"][pb_divider el_title="Divider 6" div_border_width="1" div_border_style="solid" div_border_color="#E0DEDE" appearing_animation="0" ][/pb_divider][/pb_column][/pb_row][pb_row background="none" border_width_value_="0" border_style="solid" border_color="#000" width_unit="%" div_padding_top="0" div_padding_right="0" div_padding_bottom="0" div_padding_left="0" ][pb_column span="span12"][pb_text el_title="TABELKA IKONY" width_unit="%" enable_dropcap="no" appearing_animation="0" ] [/pb_text][pb_divider el_title="Divider 7" div_border_width="1" div_border_style="solid" div_border_color="#E0DEDE" appearing_animation="0" ][/pb_divider][/pb_column][/pb_row][pb_row background="none" solid_color_value="#FFFFFF" solid_color_color="#ffffff" gradient_color="0% #FFFFFF,100% #000000" gradient_color_css="" gradient_direction="vertical" pattern="" repeat="full" image="" stretch="none" position="center center" paralax="no" parallax_scroll="no" video_url="" autoplay="no" border_width_value_="0" border_style="solid" border_color="#000" width_value="" width_unit="%" div_padding="" div_padding_top="10" div_padding_bottom="10" div_padding_right="10" div_padding_left="10" css_suffix="" id_wrapper="" ][pb_column span="span12"][pb_image el_title="HLG-120H" image_file="images/produkty/zasilacze/meanwell-netzeile-hlg-120.jpg" image_alt="Mean Well Netzeile HLG-120H" image_size="fullsize" link_type="no_link" image_container_style="no-styling" image_alignment="center" appearing_animation="0" ][/pb_image][/pb_column][/pb_row][pb_row ][pb_column span="span12"][pb_heading el_title="EIGENSCHAFTEN" tag="h2" text_align="inherit" font="custom" font_face_type="google fonts" font_face_value="Lato" font_size_value_="36" font_style="inherit" color="#000000" border_bottom_style="solid" border_bottom_color="#000000" appearing_animation="0" ]EIGENSCHAFTEN[/pb_heading][pb_divider el_title="Divider 4" div_border_width="1" div_border_style="solid" div_border_color="#E0DEDE" appearing_animation="0" ][/pb_divider][pb_text el_title="CECHY-TEKST" width_value="100" width_unit="%" enable_dropcap="no" appearing_animation="0" ] sicherung: kurzschluss | spannungsanstieg | überlastung | uberhitzung breite Betriebsspannung: 90~305 V AC (127~431 V DC) wasserdichte Metalgehaeuse mit thermoleitendem Silikon eingebaute aktive PFC Fuknktion Luftkuehlung ruettelfest bis 5G Ueberspannungschutz 4kV bezueglich der Norm IEC61000-4-5 Ausgang-Gleichstrom mit hoher Ausgangsspannung (bis 357 V DC) Einigkeit mit zahlreichen Normen und Zertifikaten hochwertige Indistrienetzteile in rauen Umgebungen 7 Jahre Garantie [/pb_text][/pb_column][/pb_row][pb_row background="none" solid_color_value="#FFFFFF" solid_color_color="#ffffff" gradient_color="0% #FFFFFF,100% #000000" gradient_color_css="" gradient_direction="vertical" pattern="" repeat="full" image="" stretch="none" position="center center" paralax="no" parallax_scroll="no" video_url="" autoplay="no" border_width_value_="0" border_style="solid" border_color="#000" width_value="" width_unit="%" div_padding="" div_padding_top="10" div_padding_bottom="10" div_padding_right="10" div_padding_left="10" css_suffix="" id_wrapper="" ][pb_column span="span12"][pb_heading el_title="TECHNISCHE DATEN" tag="h2" text_align="inherit" font="custom" font_face_type="google fonts" font_face_value="Lato" font_size_value_="36" font_style="inherit" color="#000000" border_bottom_style="solid" border_bottom_color="#000000" appearing_animation="0" ]TECHNISCHE DATEN[/pb_heading][pb_divider el_title="Divider 4 5" div_border_width="1" div_border_style="solid" div_border_color="#E0DEDE" appearing_animation="0" ][/pb_divider][pb_table el_title="Table 1" tb_style="table-default" appearing_animation="0" ][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Betriebsspannung [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 12 V DC [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Nominalstrom [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 10 A [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Strombereich [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 5 ~ 10 A [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Nominalstaerke [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 120 W [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Ausgangsspannungstoleranz [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] ± 2.5% [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Eingangsspannungsbereich [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 90 ~ 305 V AC | 127 ~ 431 V DC [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Nominale Frequenz [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 47 ~ 63 Hz [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Effizienz [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 92% [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Wechselstrom [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 1.4 A / 115 V AC | 0.6 A / 230 V AC | 0.55 A / 277 V AC [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Sicherung [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Kurzschluss | Spannungsanstieg | Überlastung | Überhitzung [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Arbeitstemperatur [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] -40°C ÷ +80°C [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Arbeitsfeuchtigkeit [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] ohne Kondensation 20 ~ 95% RH [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Normen entsprechend [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] UL8750(type”HL”), CSA C22.2 No. 250.0-08; TUV EN61347-1, EN61347-2-13, IP65, J61347-1, J61347-2-13, UL60950-1, TUV EN60950-1 [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Abmessungen [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 220 x 68 x 38.8 mm [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Gewicht [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 1.12 kg [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][/pb_table][/pb_column][/pb_row][pb_row ][pb_column span="span12"][pb_heading el_title="HERUNTERLADEN" tag="h2" text_align="inherit" font="custom" font_face_type="google fonts" font_face_value="Lato" font_size_value_="36" font_style="inherit" color="#000000" border_bottom_style="solid" border_bottom_color="#000000" appearing_animation="0" ]HERUNTERLADEN [/pb_heading][pb_divider el_title="Divider 4 5 5" div_border_width="1" div_border_style="solid" div_border_color="#E0DEDE" appearing_animation="0" ][/pb_divider][pb_button el_title="PRODUKTKARTE" button_text="PRODUKTKARTE" link_type="url" button_type_url="/download/specyfikacje/zasilacze/hlg-120h-spec.pdf" open_in="new_browser" icon="fa-download" button_alignment="inherit" button_size="default" button_color="btn-default" appearing_animation="0" css_suffix="btn-more-link s1" ][/pb_button][/pb_column][/pb_row]

Betriebsspannung	12 V DC
Nominalstrom	10 A
Strombereich	5 ~ 10 A
Nominalstaerke	120 W
Ausgangsspannungstoleranz	± 2.5%
Eingangsspannungsbereich	90 ~ 305 V AC \| 127 ~ 431 V DC
Nominale Frequenz	47 ~ 63 Hz
Effizienz	92%
Wechselstrom	1.4 A / 115 V AC \| 0.6 A / 230 V AC \| 0.55 A / 277 V AC
Sicherung	Kurzschluss \| Spannungsanstieg \| Überlastung \| Überhitzung
Arbeitstemperatur	-40°C ÷ +80°C
Arbeitsfeuchtigkeit	ohne Kondensation 20 ~ 95% RH
Normen entsprechend	UL8750(type”HL”), CSA C22.2 No. 250.0-08; TUV EN61347-1, EN61347-2-13, IP65, J61347-1, J61347-2-13, UL60950-1, TUV EN60950-1
Abmessungen	220 x 68 x 38.8 mm
Gewicht	1.12 kg
