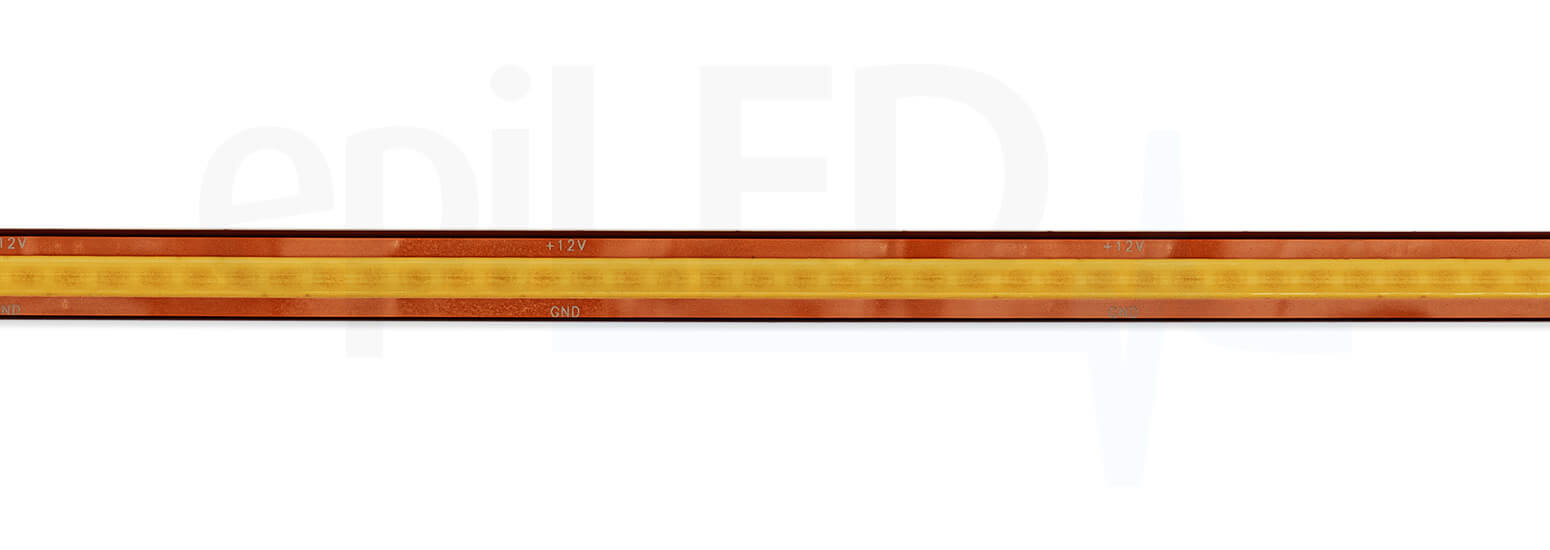

COB-528 Free Cut

[pb_row background="none" solid_color_value="#FFFFFF" solid_color_color="#ffffff" gradient_color="0% #FFFFFF,100% #000000" gradient_color_css="" gradient_direction="vertical" pattern="" repeat="full" image="" stretch="YES" position="center center" paralax="no" parallax_scroll="no" video_url="" autoplay="no" border_width_value_="0" border_style="solid" border_color="#000" width_value="" width_unit="%" div_padding="" div_padding_top="10" div_padding_bottom="10" div_padding_right="10" div_padding_left="10" css_suffix="" id_wrapper="" ][pb_column span="span12"][pb_heading tag="h1" text_align="inherit" font="custom" font_face_type="google fonts" font_face_value="Lato" font_size_value_="70" font_style="bold" color="#000000" border_bottom_width_value_="0" border_bottom_style="solid" border_bottom_color="#000000" padding_bottom_value_="0" appearing_animation="0" ]COB-528 Free Cut[/pb_heading][/pb_column][/pb_row][pb_row background="none" solid_color_value="#FFFFFF" solid_color_color="#ffffff" gradient_color="0% #FFFFFF,100% #000000" gradient_color_css="" gradient_direction="vertical" pattern="" repeat="full" image="" stretch="none" position="center center" paralax="no" parallax_scroll="no" video_url="" autoplay="no" border_width_value_="0" border_style="solid" border_color="#000" width_value="" width_unit="%" div_padding="" div_padding_top="10" div_padding_bottom="10" div_padding_right="10" div_padding_left="10" css_suffix="" id_wrapper="" ][pb_column span="span12"][pb_divider div_border_width="1" div_border_style="solid" div_border_color="#E0DEDE" appearing_animation="0" ][/pb_divider][/pb_column][/pb_row][pb_row background="none" border_width_value_="0" border_style="solid" border_color="#000" width_unit="%" div_padding_top="0" div_padding_right="0" div_padding_bottom="0" div_padding_left="0" ][pb_column span="span12"][pb_text width_unit="%" enable_dropcap="no" appearing_animation="0" ] [/pb_text][pb_divider div_border_width="1" div_border_style="solid" div_border_color="#E0DEDE" appearing_animation="0" ][/pb_divider][/pb_column][/pb_row][pb_row background="none" solid_color_value="#FFFFFF" solid_color_color="#ffffff" gradient_color="0% #FFFFFF,100% #000000" gradient_color_css="" gradient_direction="vertical" pattern="" repeat="full" image="" stretch="none" position="center center" paralax="no" parallax_scroll="no" video_url="" autoplay="no" border_width_value_="0" border_style="solid" border_color="#000" width_value="" width_unit="%" div_padding="" div_padding_top="10" div_padding_bottom="10" div_padding_right="10" div_padding_left="10" css_suffix="" id_wrapper="" ][pb_column span="span12"][pb_image el_title="LED-Streifen COB-528 Free Cut" image_file="images/produkty/tasmy/led-streifen-cob-528-free-cut.jpg" image_alt="LED-Streifen COB-528 Free Cut" image_size="fullsize" link_type="image" image_container_style="no-styling" image_alignment="center" appearing_animation="0" ][/pb_image][/pb_column][/pb_row][pb_row ][pb_column span="span12"][pb_heading el_title="TECHNISCHE DATEN" tag="h2" text_align="inherit" font="custom" font_face_type="google fonts" font_face_value="Lato" font_size_value_="36" font_style="inherit" color="#000000" border_bottom_style="solid" border_bottom_color="#000000" appearing_animation="0" ]TECHNISCHE DATEN[/pb_heading][pb_divider div_border_width="1" div_border_style="solid" div_border_color="#E0DEDE" appearing_animation="0" ][/pb_divider][pb_table tb_style="table-default" appearing_animation="0" ][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Betriebsspannung [/pb_table_item][pb_table_item width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 12V DC | 24V DC [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Leistung [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 13 W/m [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Max. Versorgungssabschnitt [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 5 m [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Farbwiedergabeindex CRI [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] >90 [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Leuchtwinkel [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 180° [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Plusfrequenzmodulation (PFM) [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] JA [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] LED-Streifenbreite [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 8 mm [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Schnittstelle [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] beliebig [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] LED-Streifenlänge [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 5 m, 25 m [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Diodentyp [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] COB528 [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] LED-Dichte [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] 528 LED/m [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] PCB [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 2 oz [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Montage [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Doppelseitiges Klebeband + Montagekleber [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Lebensdauer [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] ~50.000 Stunden [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Arbeitstemperatur [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] -20°C ÷ +40°C [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] IP Schutz [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] IP20 [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Normgerecht [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] CE / UKCA / UL / RoHS / WEEE [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] Garantie [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 3 Jahre [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][/pb_table][/pb_column][/pb_row][pb_row ][pb_column span="span12"][pb_heading el_title="FARBEN" tag="h2" text_align="inherit" font="custom" font_face_type="google fonts" font_face_value="Lato" font_size_value_="36" font_style="inherit" color="#000000" border_bottom_style="solid" border_bottom_color="#000000" appearing_animation="0" ]FARBEN[/pb_heading][pb_divider div_border_width="1" div_border_style="solid" div_border_color="#E0DEDE" appearing_animation="0" ][/pb_divider][pb_table tb_style="table-hover" appearing_animation="0" ][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Lichtfarbe [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] CCT [K] [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Lichtstrom [lm/m] [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Lichtausbeute [lm/W] [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="active" ] Energieklasse [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] WW [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 2.700-3.200 [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 1.418 [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 103 [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] F [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][pb_table_item tagname="tr_start" ][/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] NW [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 3.800-4.200 [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 1.531 [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] 114 [/pb_table_item][pb_table_item width_value="" width_type="%" tagname="td" rowspan="1" colspan="1" rowstyle="default" ] F [/pb_table_item][pb_table_item tagname="tr_end" ][/pb_table_item][/pb_table][pb_alert alert_style="alert-danger" alert_close="no" appearing_animation="0" ] Nach den verfügbaren Farben fragen Sie bitte Ihren Ansprechpartner. [/pb_alert][/pb_column][/pb_row][pb_row background="none" solid_color_value="#FFFFFF" solid_color_color="#ffffff" gradient_color="0% #FFFFFF,100% #000000" gradient_color_css="" gradient_direction="vertical" pattern="" repeat="full" image="" stretch="none" position="center center" paralax="no" parallax_scroll="no" video_url="" autoplay="no" border_width_value_="0" border_style="solid" border_color="#000" width_value="" width_unit="%" div_padding="" div_padding_top="10" div_padding_bottom="10" div_padding_right="10" div_padding_left="10" css_suffix="" id_wrapper="" ][pb_column span="span12"][pb_heading el_title="ABMESSUNGEN" tag="h2" text_align="inherit" font="custom" font_face_type="google fonts" font_face_value="Lato" font_size_value_="36" font_style="inherit" color="#000000" border_bottom_style="solid" border_bottom_color="#000000" appearing_animation="0" ]ABMESSUNGEN[/pb_heading][pb_divider div_border_width="1" div_border_style="solid" div_border_color="#e0dede" appearing_animation="0" ][/pb_divider][pb_image el_title="LED-streifen COB-528 Free Cut Abmessungen" image_file="images/produkty/tasmy/led-streifen-cob-528-free-cut-abmessungen.jpg" image_alt="LED-streifen COB-528 Free Cut Abmessungen" image_size="fullsize" link_type="no_link" image_container_style="no-styling" image_alignment="center" appearing_animation="0" ][/pb_image][/pb_column][/pb_row][pb_row ][pb_column span="span12"][pb_heading el_title="VERKABELUNGSDIAGRAMM" tag="h2" text_align="inherit" font="custom" font_face_type="google fonts" font_face_value="Lato" font_size_value_="36" font_style="inherit" color="#000000" border_bottom_style="solid" border_bottom_color="#000000" appearing_animation="0" ]VERKABELUNGSDIAGRAMM[/pb_heading][pb_divider div_border_width="1" div_border_style="solid" div_border_color="#e0dede" appearing_animation="0" ][/pb_divider][pb_image el_title="LED-Streifen COB-528 Free Cut Verkabelungsdiagramm" image_file="images/produkty/tasmy/led-streifen-cob-528-free-cut-verkabelungsdiagramm.jpg" image_alt="LED-Streifen COB-528 Free Cut Verkabelungsdiagramm" image_size="fullsize" link_type="no_link" image_container_style="no-styling" image_alignment="center" appearing_animation="0" ][/pb_image][/pb_column][/pb_row][pb_row background="none" solid_color_value="#FFFFFF" solid_color_color="#ffffff" gradient_color="0% #FFFFFF,100% #000000" gradient_color_css="" gradient_direction="vertical" pattern="" repeat="full" image="" stretch="none" position="center center" paralax="no" parallax_scroll="no" video_url="" autoplay="no" border_width_value_="0" border_style="solid" border_color="#000" width_value="" width_unit="%" div_padding="" div_padding_top="10" div_padding_bottom="10" div_padding_right="10" div_padding_left="10" css_suffix="" id_wrapper="" ][pb_column span="span12"][pb_heading el_title="HERUNTERLADEN" tag="h2" text_align="inherit" font="custom" font_face_type="google fonts" font_face_value="Lato" font_size_value_="36" font_style="inherit" color="#000000" border_bottom_style="solid" border_bottom_color="#000000" appearing_animation="0" ]HERUNTERLADEN[/pb_heading][pb_divider div_border_width="1" div_border_style="solid" div_border_color="#E0DEDE" appearing_animation="0" ][/pb_divider][pb_button el_title="DATENBLATT" button_text="DATENBLATT" link_type="url" button_type_url="/download/specyfikacje/tasmy/led-streifen-cob-528-free-cut-datenblatt.pdf" open_in="new_browser" icon="fa-download" button_alignment="inherit" button_size="default" button_color="btn-default" appearing_animation="0" css_suffix="btn-more-link s1" ][/pb_button][pb_button el_title="EU-KONFORMITÄTSERKLÄRUNG" button_text="EU-KONFORMITÄTSERKLÄRUNG" link_type="url" button_type_url="/download/deklaracje/eu-declaration-of-conformity-led-strips.pdf" open_in="new_browser" icon="fa-book" button_alignment="inherit" button_size="default" button_color="btn-default" appearing_animation="0" css_suffix=" btn-more-link s1" ][/pb_button][/pb_column][/pb_row]

Betriebsspannung	12V DC \| 24V DC
Leistung	13 W/m
Max. Versorgungssabschnitt	5 m
Farbwiedergabeindex CRI	>90
Leuchtwinkel	180°
Plusfrequenzmodulation (PFM)	JA

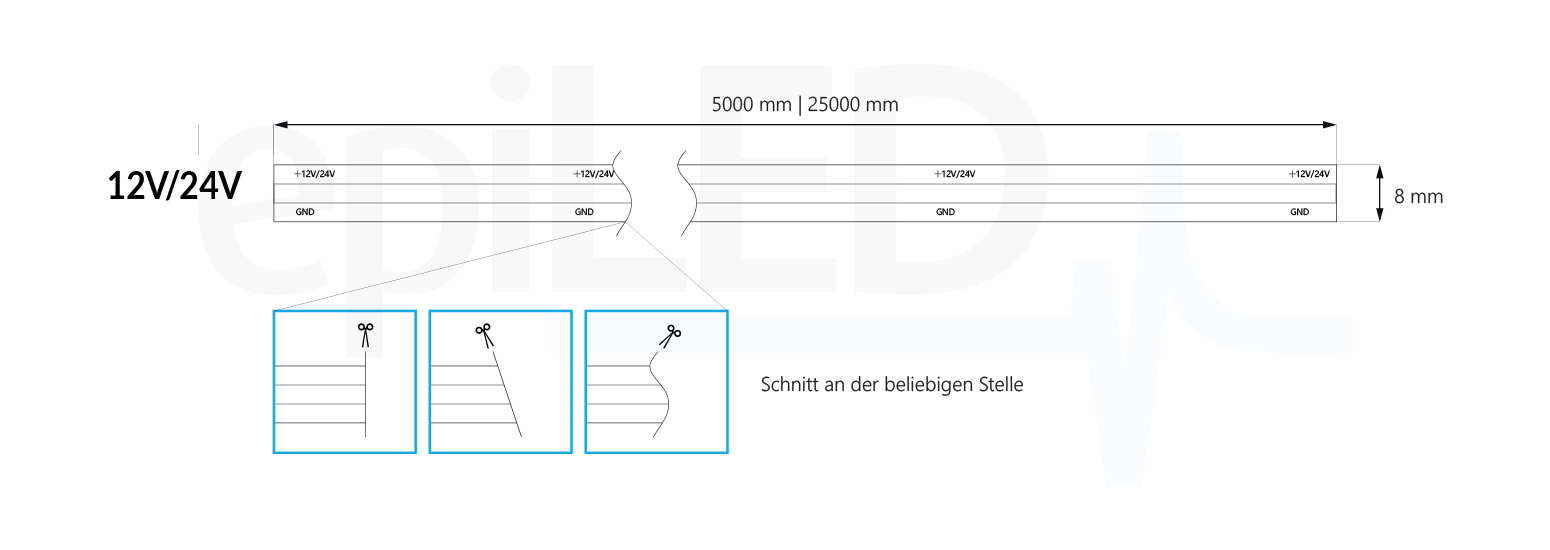

LED-Streifenbreite	8 mm
Schnittstelle	beliebig
LED-Streifenlänge	5 m, 25 m
Diodentyp	COB528
LED-Dichte	528 LED/m
PCB	2 oz
Montage	Doppelseitiges Klebeband + Montagekleber
Lebensdauer	~50.000 Stunden
Arbeitstemperatur	-20°C ÷ +40°C
IP Schutz	IP20
Normgerecht	CE / UKCA / UL / RoHS / WEEE
Garantie	3 Jahre

Lichtfarbe	CCT [K]	Lichtstrom [lm/m]	Lichtausbeute [lm/W]	Energieklasse
WW	2.700-3.200	1.418	103	F
NW	3.800-4.200	1.531	114	F
