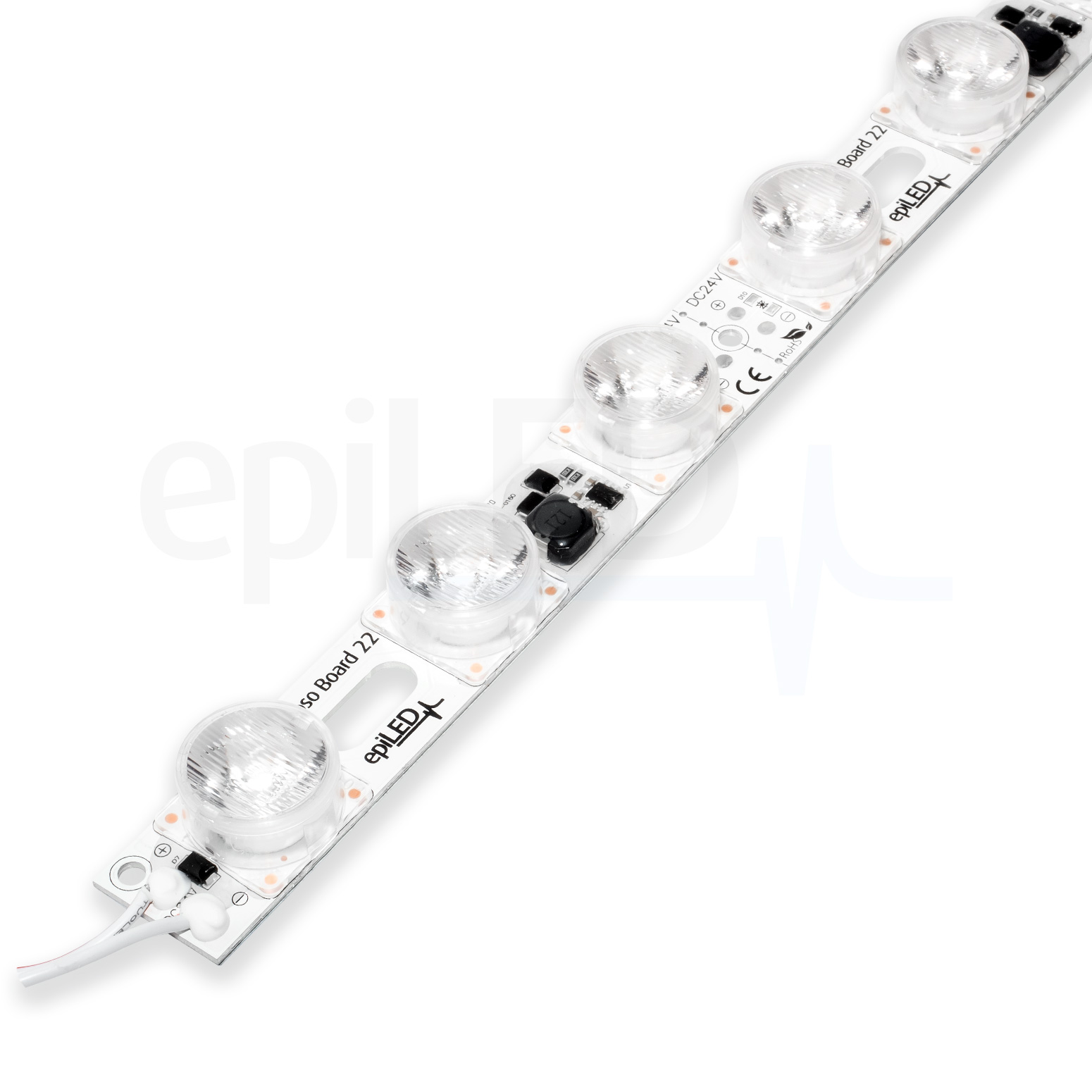

Elypso Board 22
up to 2.5 meteres edge light
 |
 |
 |
 |
 |
 |
 |
TECHNICAL SPECIFICATIONS
|
Nominal power usage |
22.0 W |
|
Luminous Flux |
2400 lm |
|
Beam angle |
19° x 9° |
|
Current stabilization |
YES |
|
Input Voltage |
12 V DC |
|
Module dimensions (L x W x D) |
450 x 25 x 13.8 mm |
|
Cable length |
40 mm ± 5 mm |
|
Module length incl. cable |
490 mm |
|
No. of modules in the chain / bag |
5 pcs / - |
|
Lifespan |
~50 000 h |
|
Working temperature |
-25C ÷ +55°C |
|
Color Rendering Index |
≥82 |
|
IP Rating |
IP20 |
|
Warranty |
3 years |

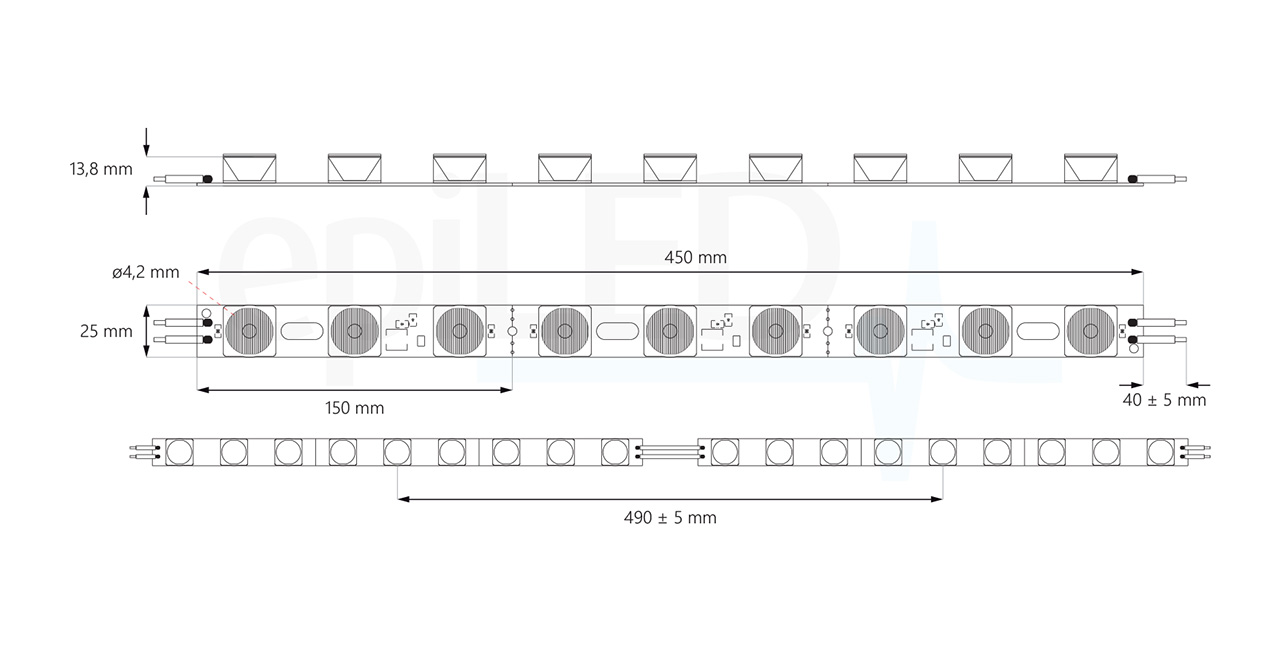

DIMENSIONS

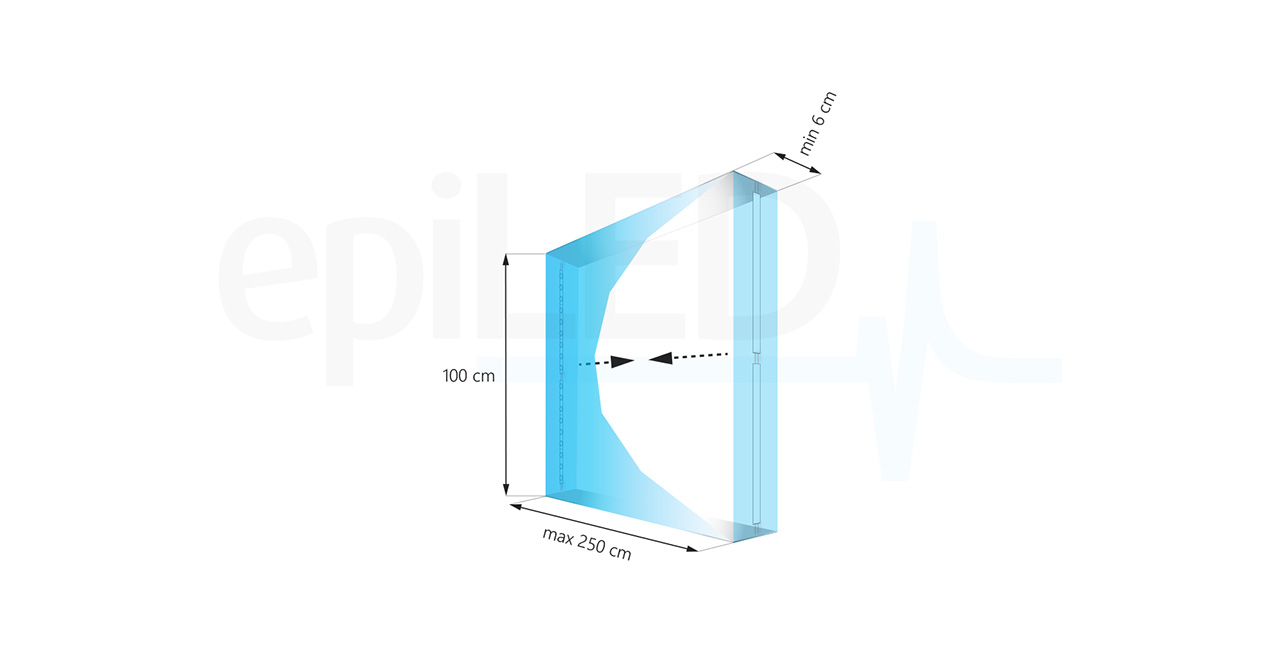

APPLICATION
best for one-sded lightboxes (6-12 cm depth) and two-sided lightboxes (9-15 cm depth)
|
Number of modules |
4 pcs |
|---|---|
|
Lumen output |
9 600 lm |
|
Power usage |
88 W |
NOTE: the exact number of modules depends on the used materials and the effect we want to achieve.
